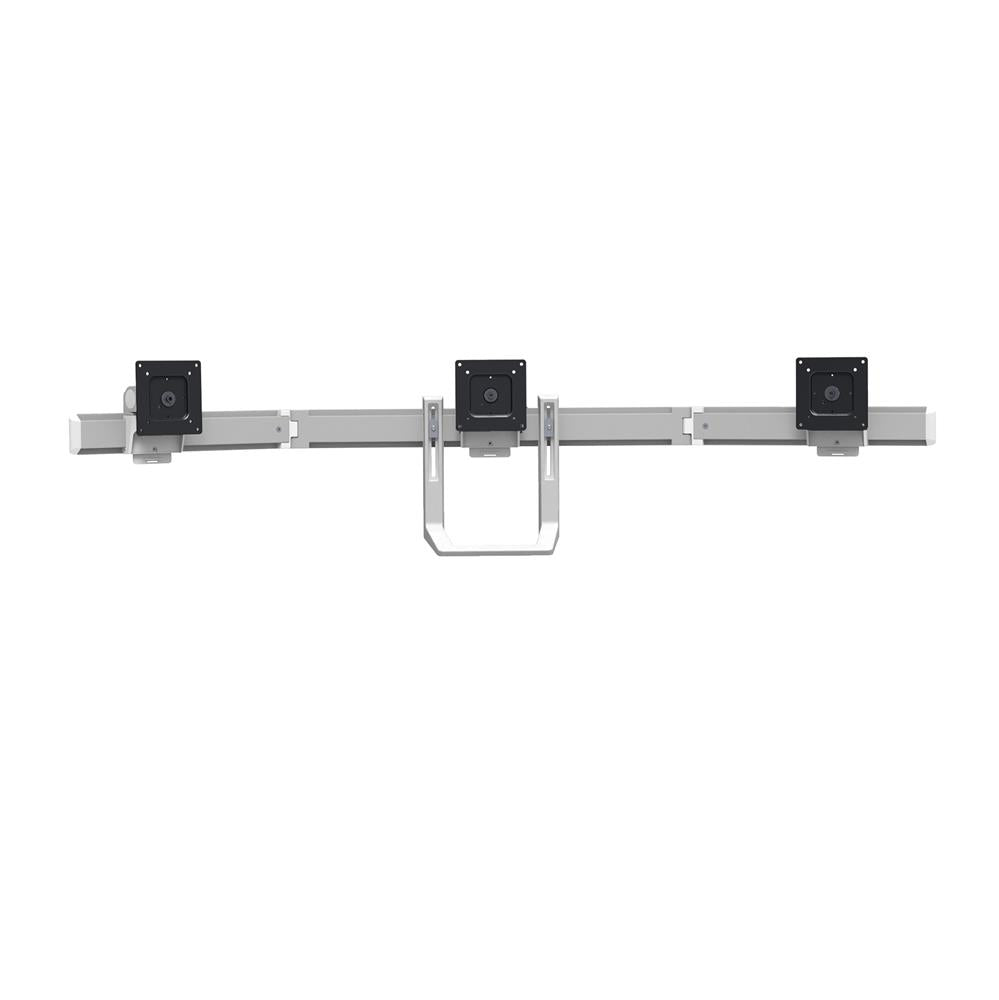

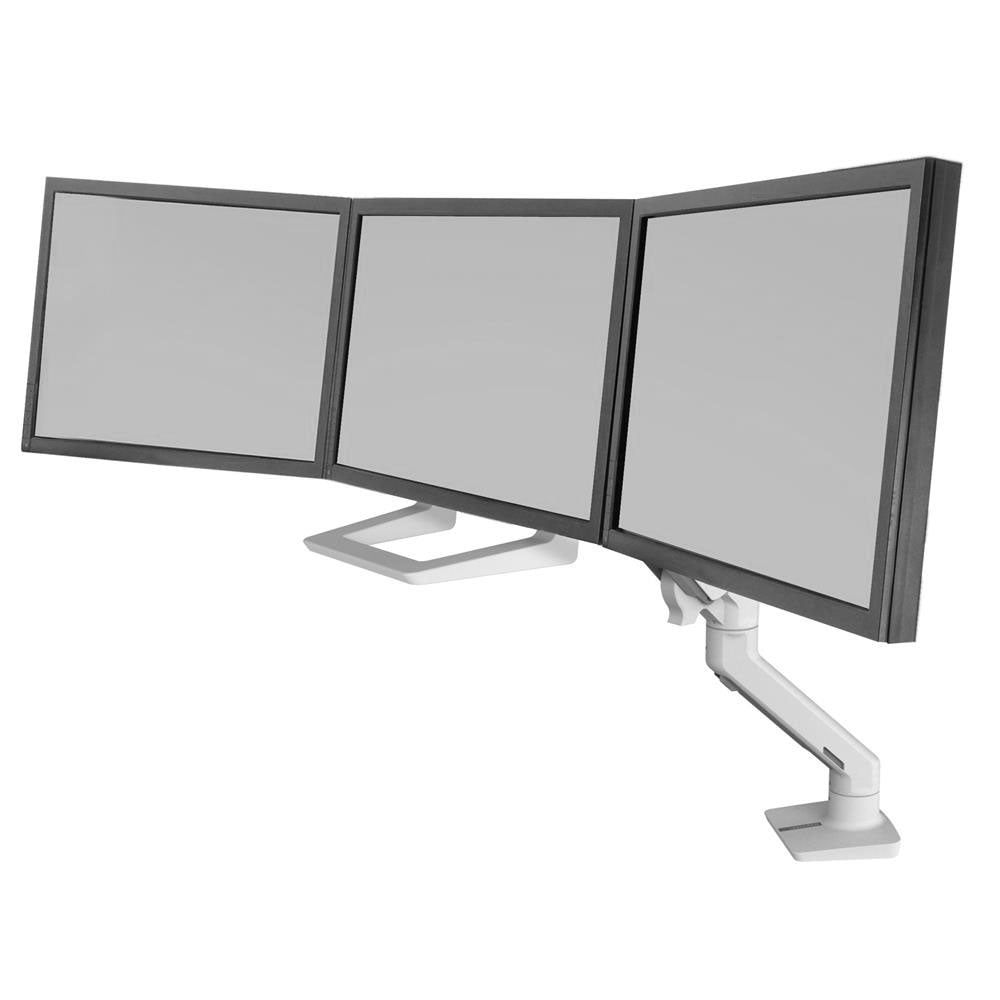

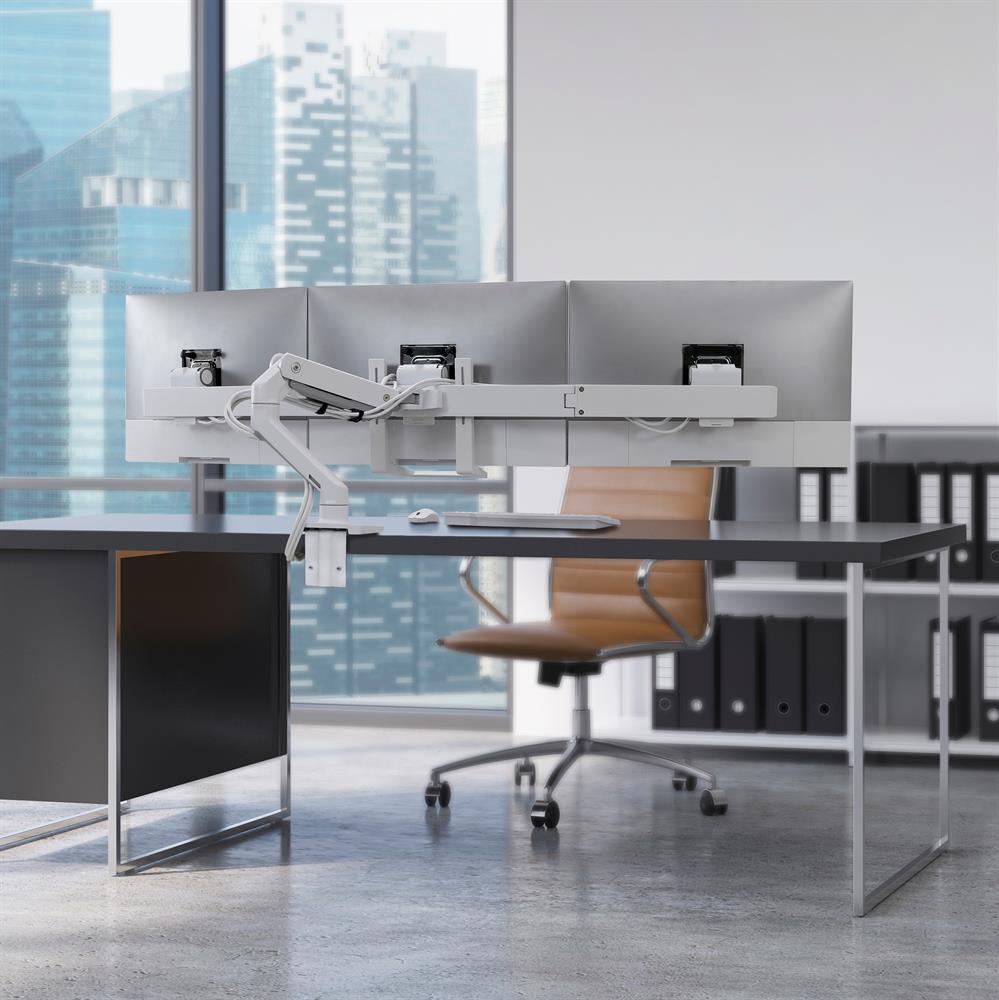

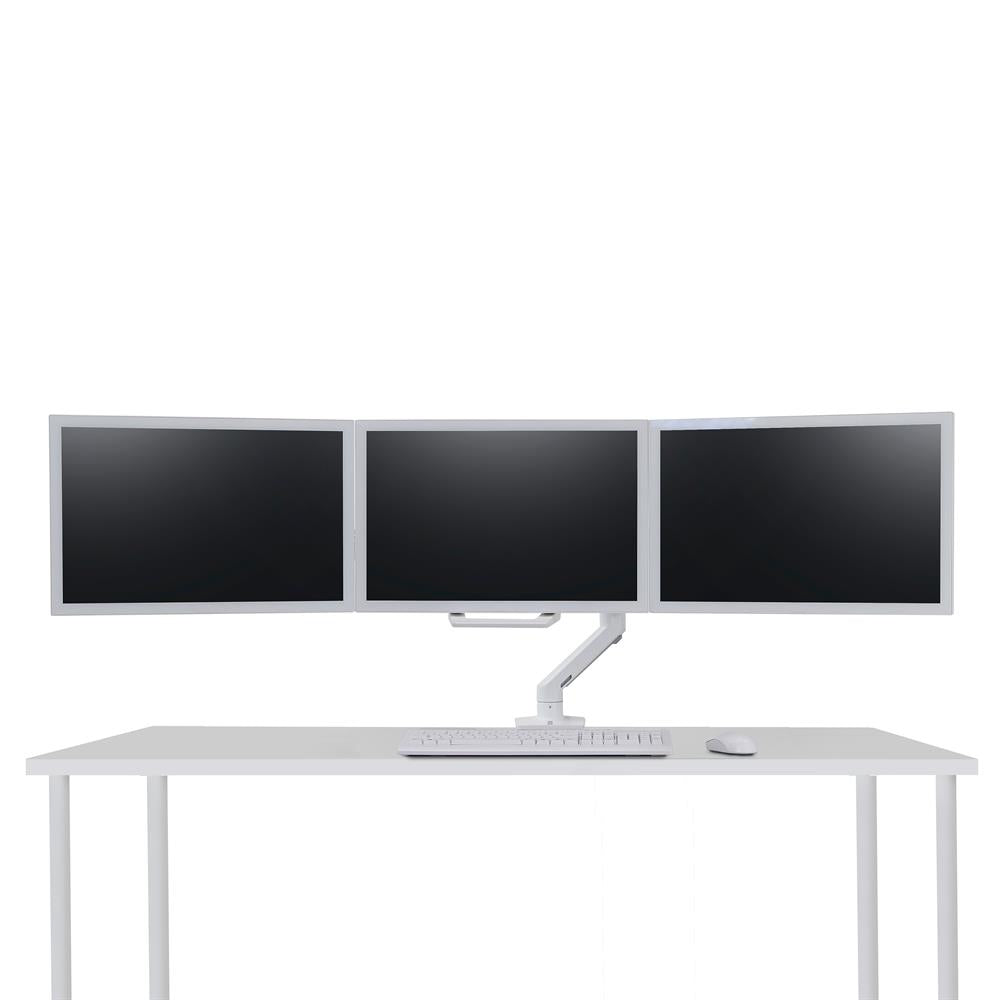

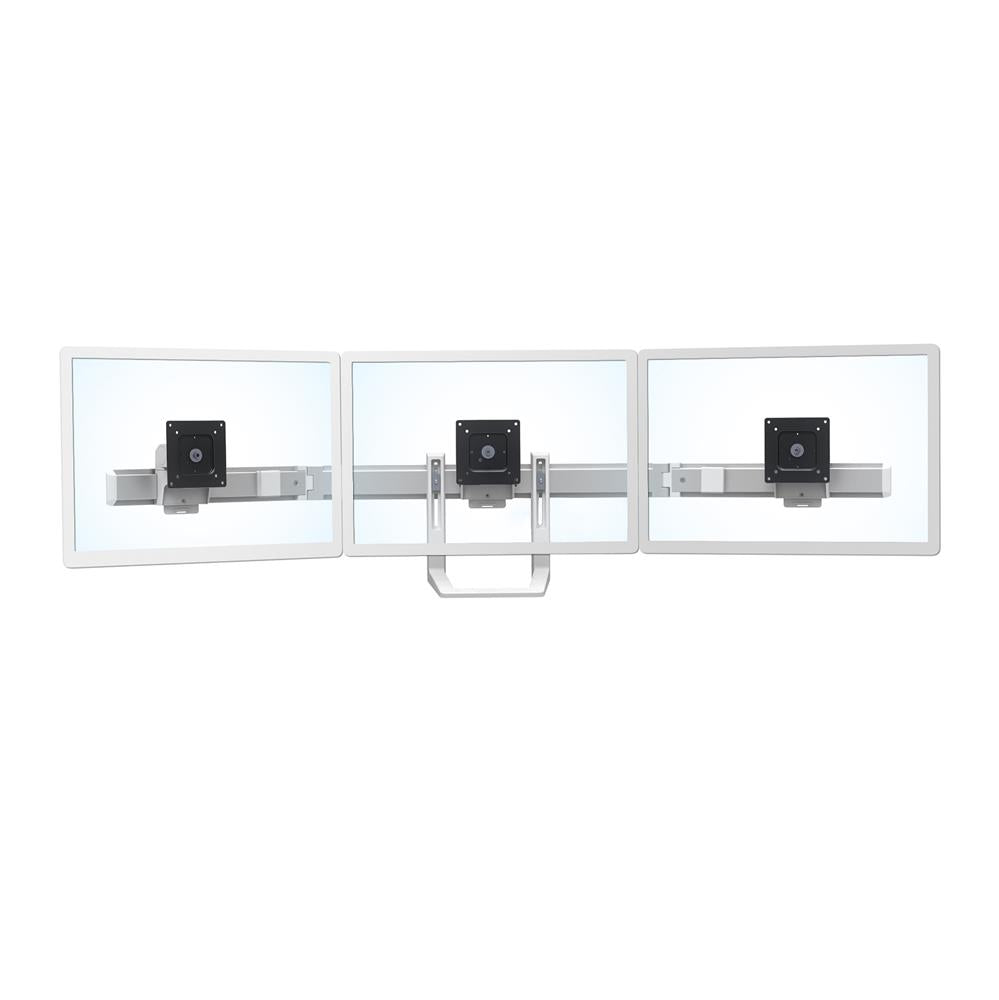

HX Triple Monitor Bow

Add flexibility and superior ergonomics to your monitors with the HX Desk Monitor Arm and the accessory HX Triple Bow Kit. The triple hinge bow attaches directly to the arm to support three 24" monitors and includes a handle for easy positioning. Your monitor stays within your workspace with a rotation stop that limits the range to 180°.

Extension/retraction motion and integrated height adjustment capability promote user comfort. Lifting screens off the desktop helps free up valuable surface space.

Colour option:
White - consists of 45-475-216 and 98-009-216
Polished Aluminum - consists of 45-475-026 and 98-009-026

  • Increases viewing comfort: Helps reduce eye, back and neck strain
  • Sleek new post design
  • The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment
  • Additionally, the hinged bow optimises the viewing range for enhanced ergonomic comfort
  • Independent, quick release monitor pivots with effortless rotation, pan and tilt for custom positioning of each monitor
  • Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
  • Patented CF™ motion technology provides premium ease-of-use display adjustment
  • Cable management feature routes cables tightly under the arm and through the extension, out of the way
  • Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
  • Folding arm frees up space in constrained areas
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  Weight Capacity   Individual LCD weight: 1.0 - 4.6 kg per monitor. Total LCD weight: 3.0–13.8 kg
  LCD Size   ≤ 24"
  Tilt   70° backward, 5° forward
  Pan   180°
  Rotation   360°
  Lift   292 mm

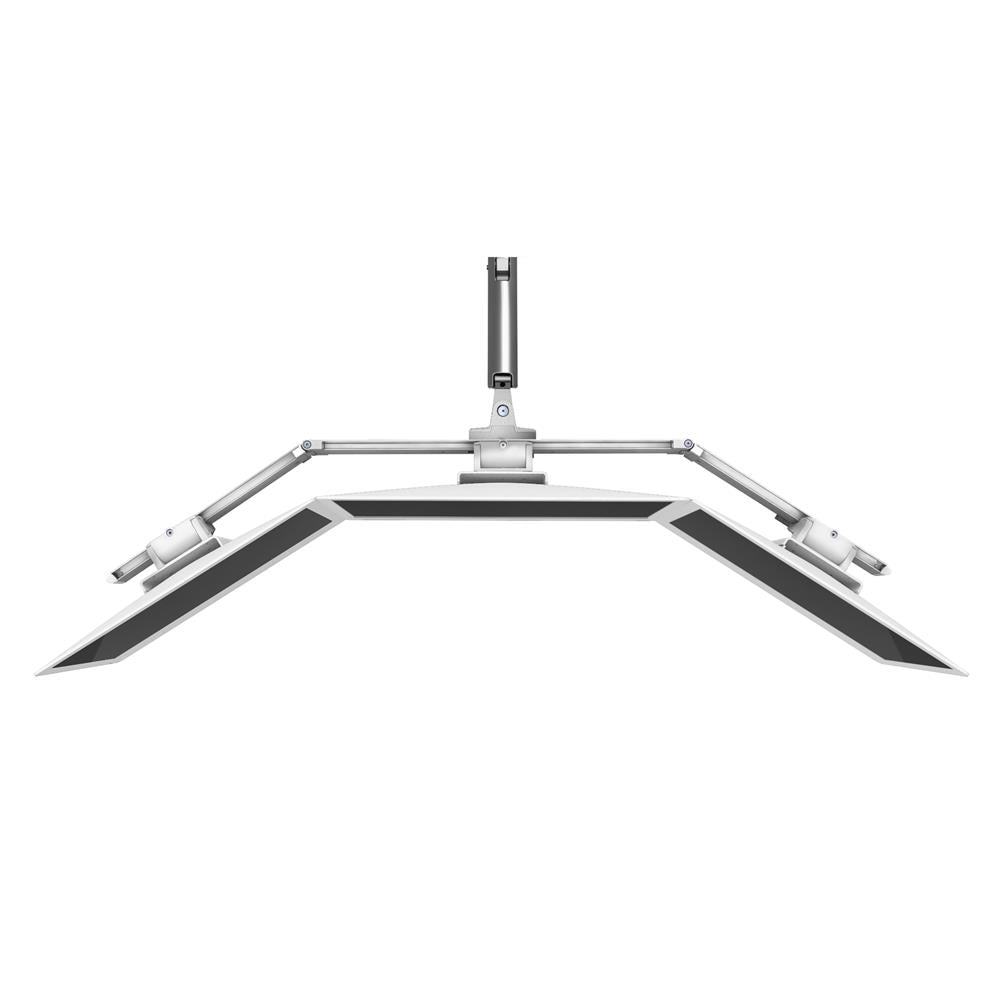

  Hinge bow pivots   40° inward and 90° outward
  Arm Extension   607 mm
  Material   High quality aluminum alloy
  Desk Mount   Clamp and Bolt-through
  Display Compatibility      VESA 75/100mm
