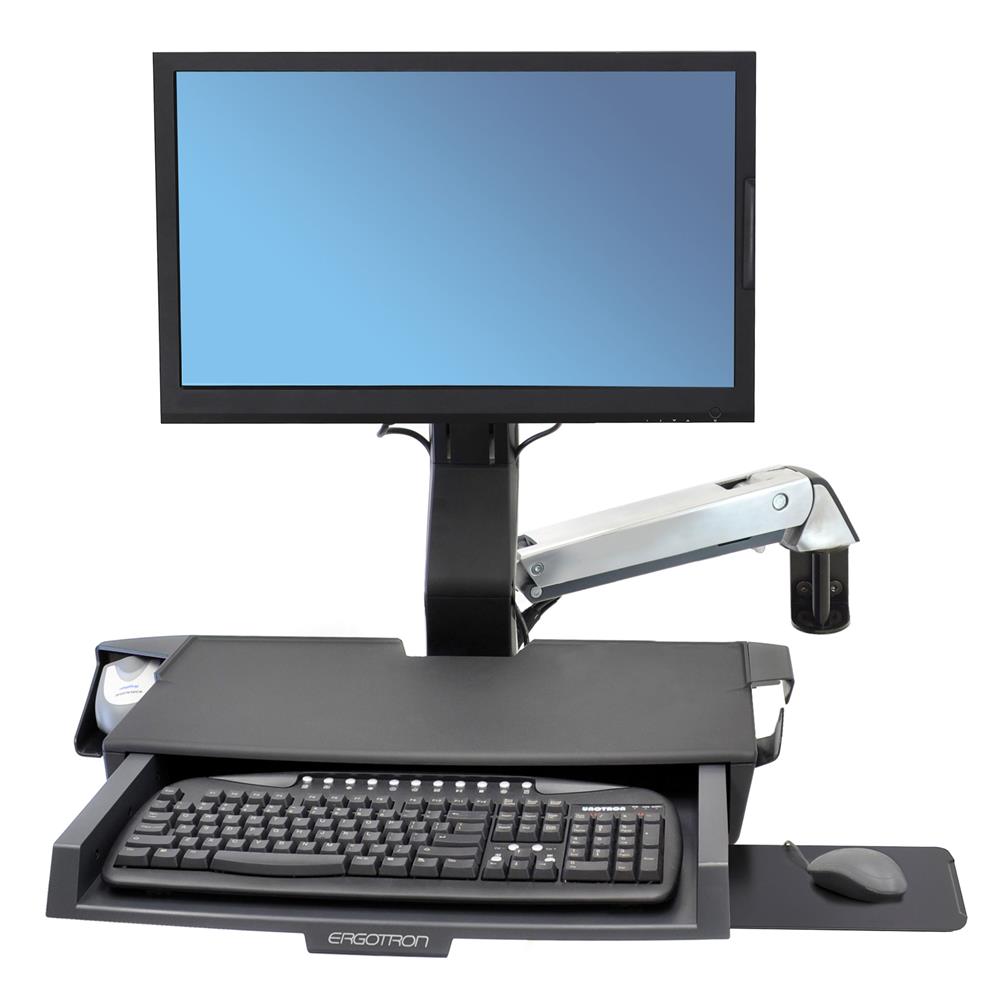

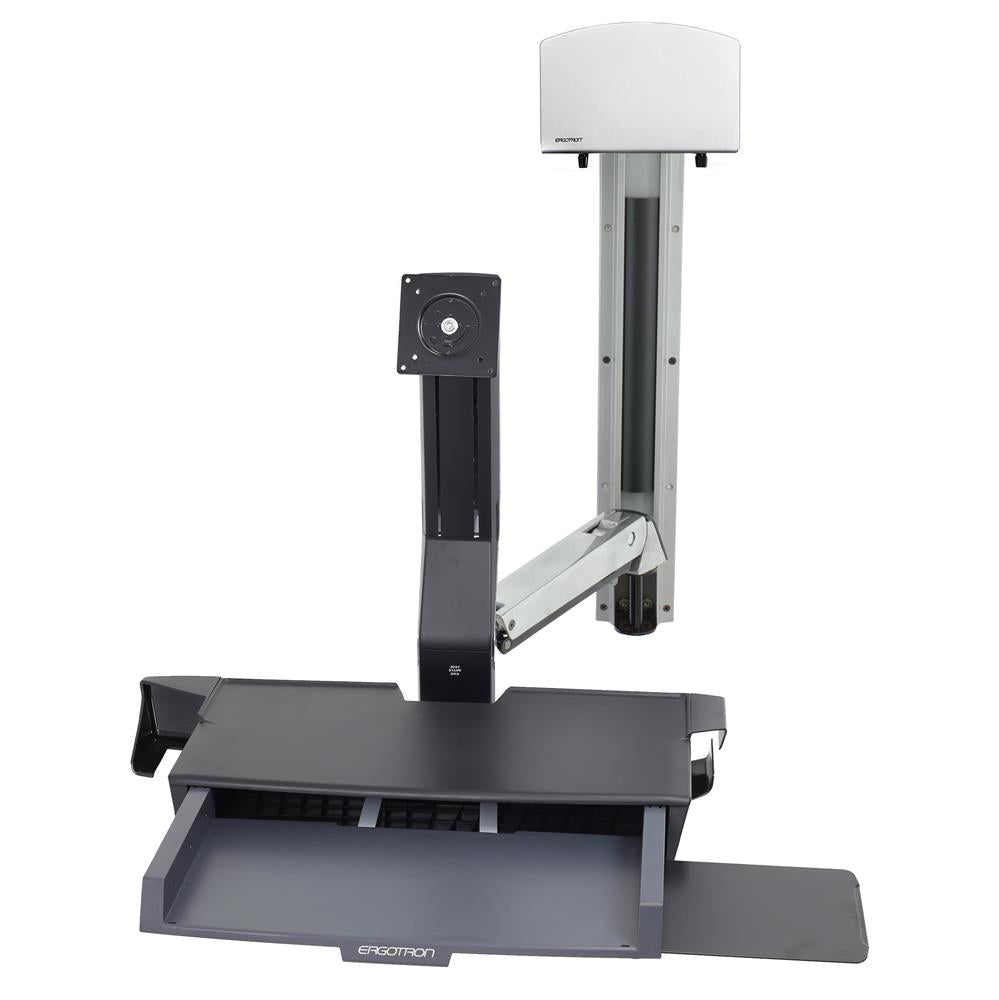

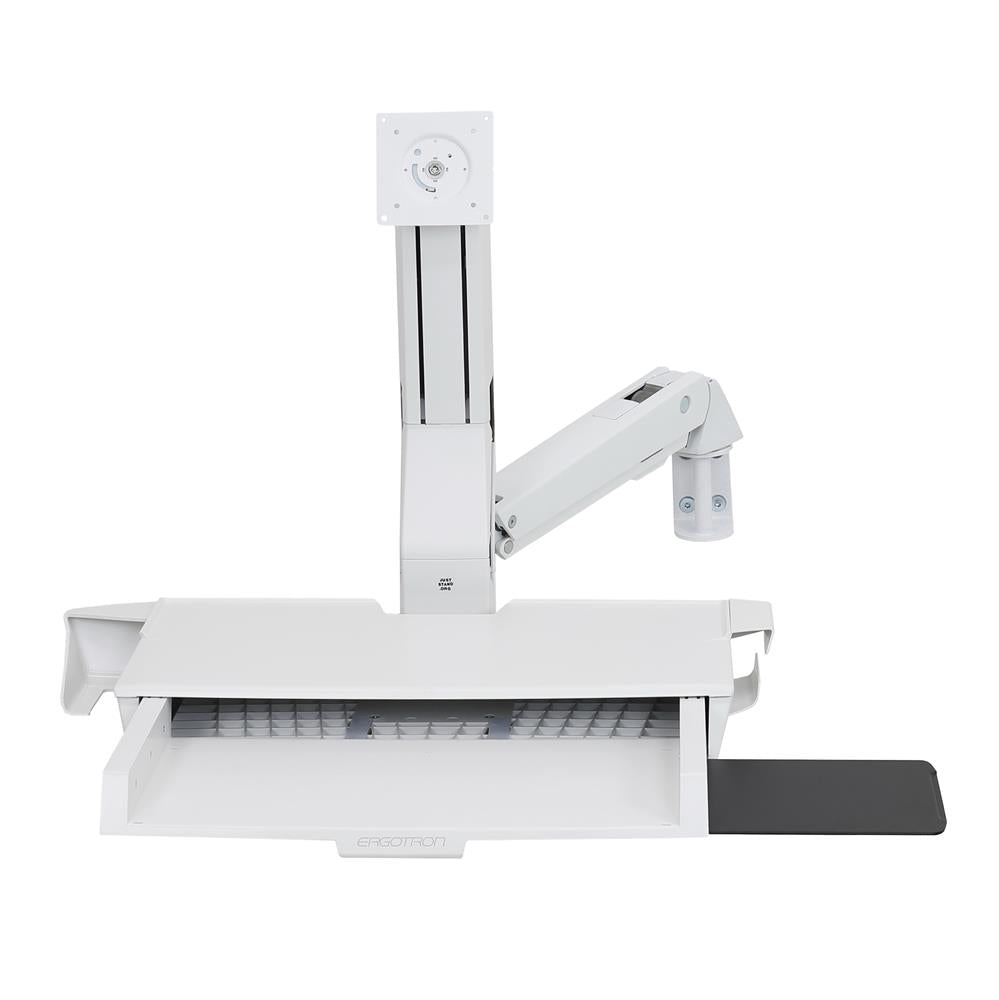

StyleView Sit-Stand Combo Arm with Worksurface




Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver workflow.

Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Work sitting or standing with the arm’s ergonomic 64 cm LCD height adjustment range. A unique cable management system conceals and organises cords, making cleaning easy

Colour Options:
Polished aluminum (45-260-026)
White (45-260-216)

Features
  • Support workflow needs with sturdy worksurface: 57.8 x 26.9 cm
  • Handle-contact surfaces and Wrist Rest are treated with Agion® Antimicrobial for product protection
  • Flexible, open-architecture design is scalable for future computer equipment
  • Comfortable, ergonomic data entry—work sitting or standing with 51 cm single-motion lift adjustment
  • 12.7 cm independent LCD height adjustment ergonomically accommodates individual users
  • Easy-to-clean features promote superior infection control
  • Barcode scanner holder provides easy access to hand-held scanner

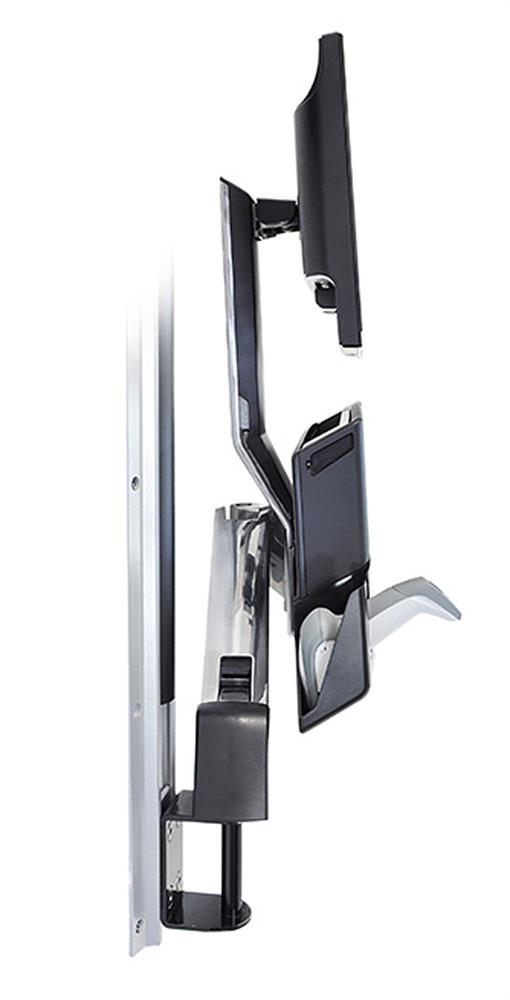

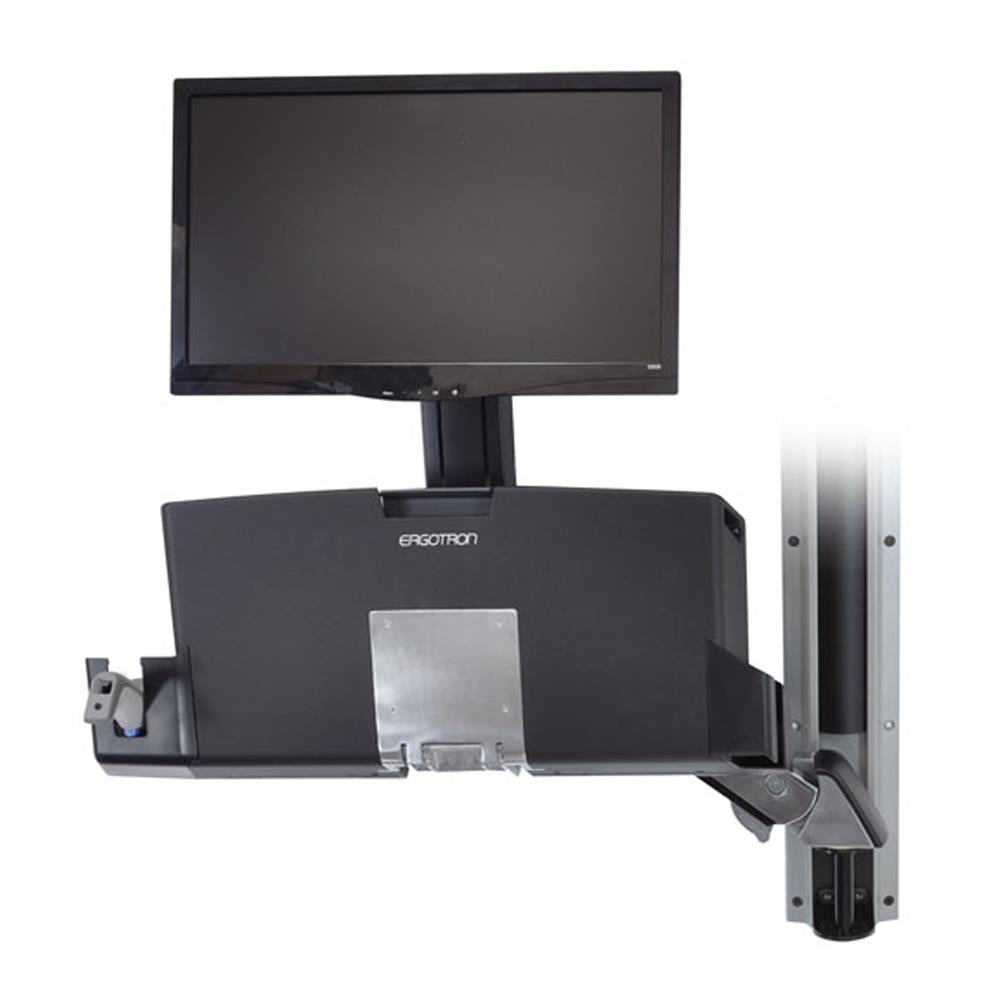

  • Extend LCD and keyboard up to 109 cm from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 20.3 cm
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
  • Maintains the relative position of screen and keyboard throughout full range of motion

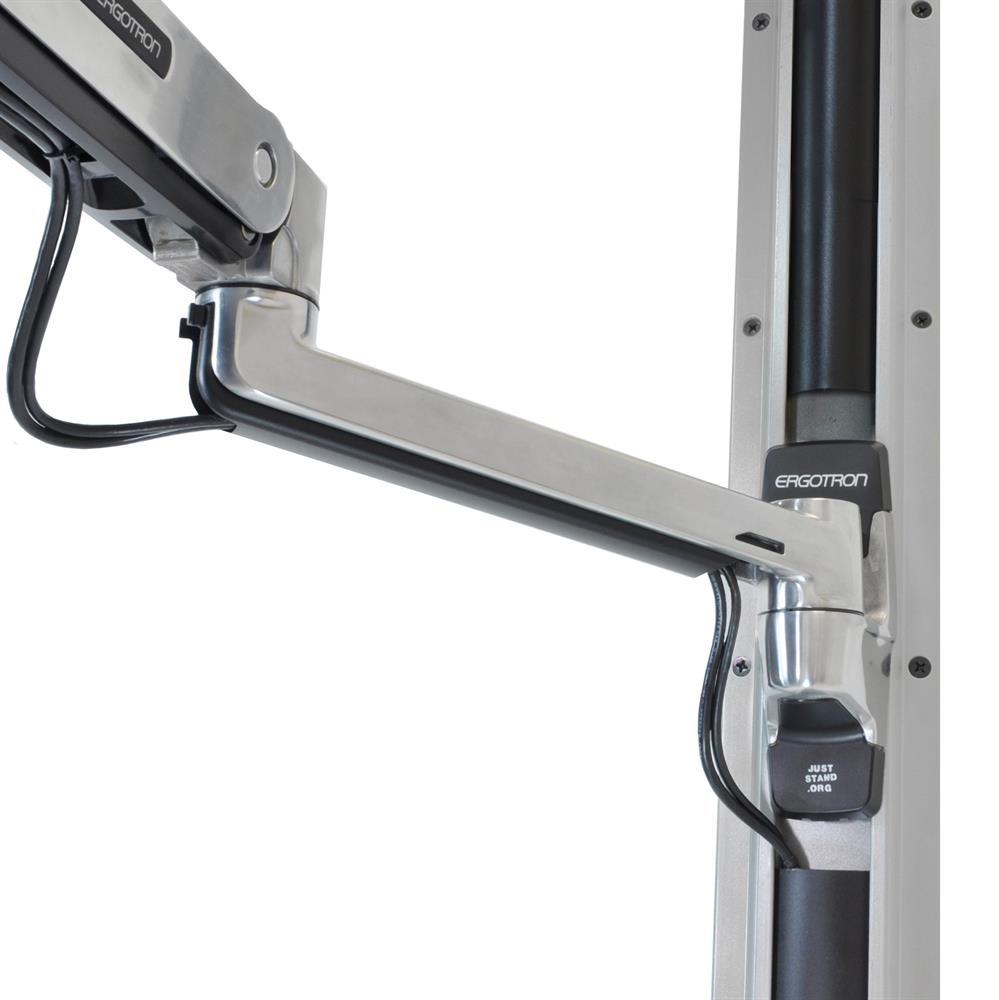

  • Clean, concealed and neat routing of cables through the expansive cable management system
Specifications
Weight Capacity   14.5 kg *
  LCD Size   ≤ 24"
  Tilt   30° ‡
  Rotation   90° P/L
  Material   steel
  Pan   360°
  Lift   635 mm †
  Display Compatibility   VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

* Weight Capacity: display = 2.7–8.2 kg; worksurface = 4.5 kg; keyboard, mouse and barcode scanner = 1.8 kg
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°

Technical Drawing
For technical drawing please view in gallery or download PDF file.

Integrated mouse and barcode scanner holder provide easy access

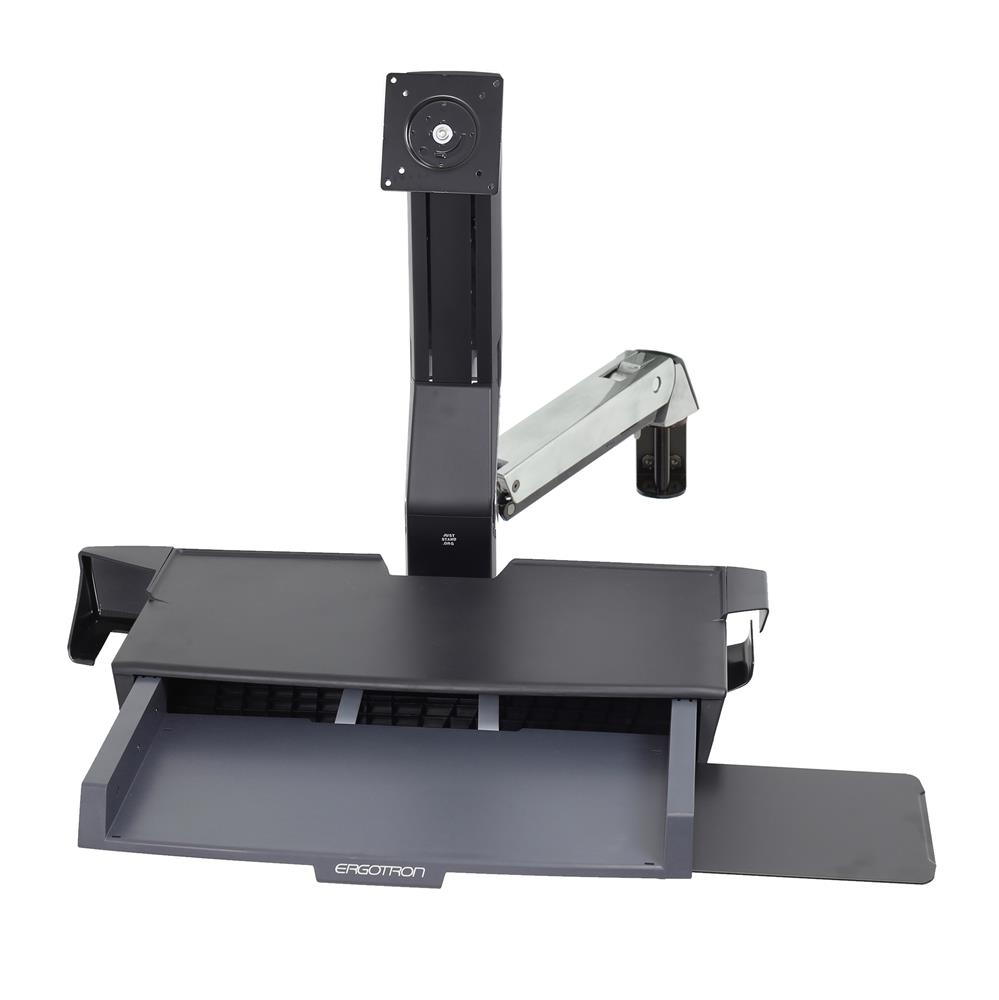

Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 57.8 x 26.9 cm. Keyboard tray is 47.2 x 22.8 cm. Maximum allowable keyboard height = 34 mm

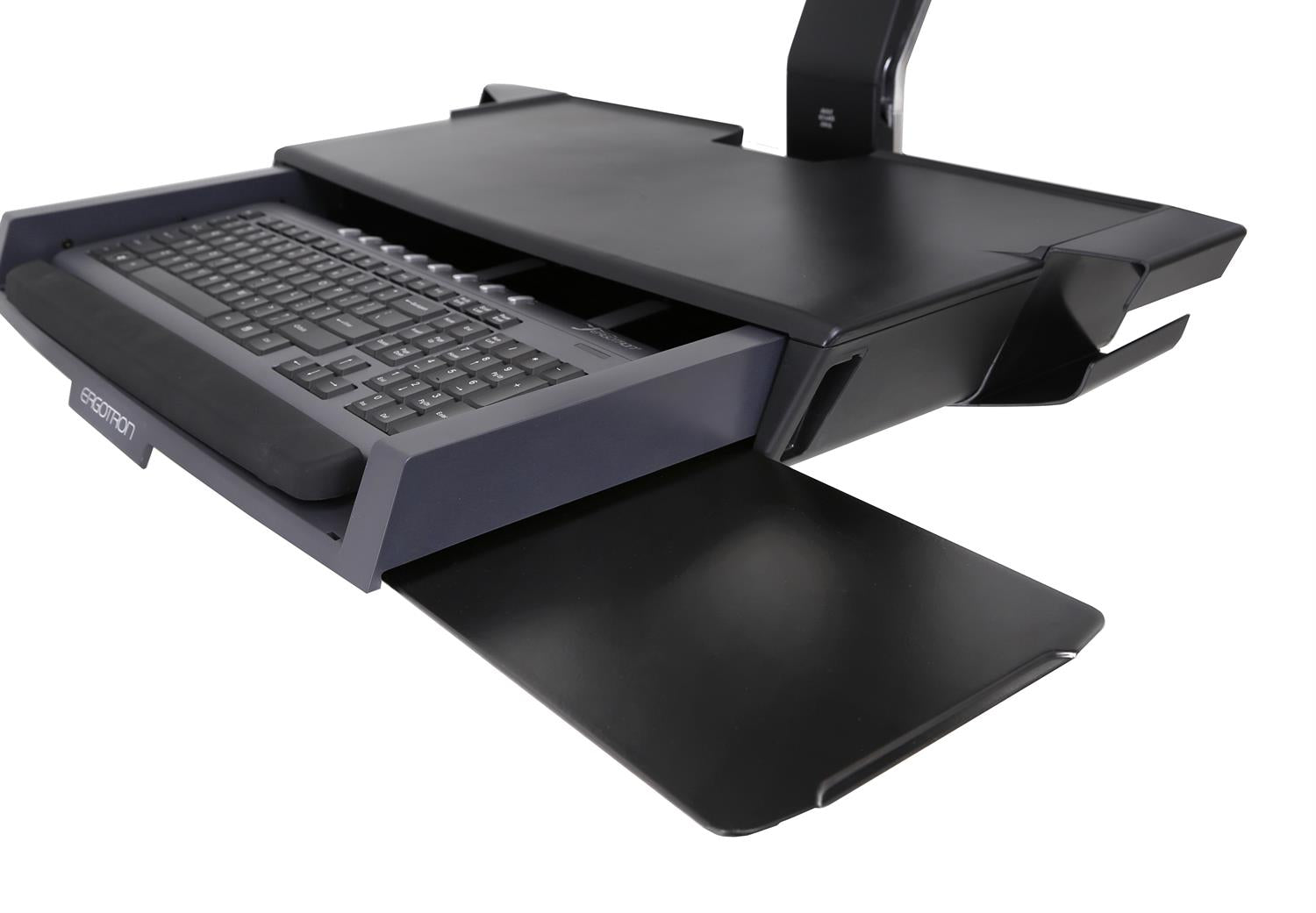

Back-tilt keyboard tray adjustable from 0° to -10°
