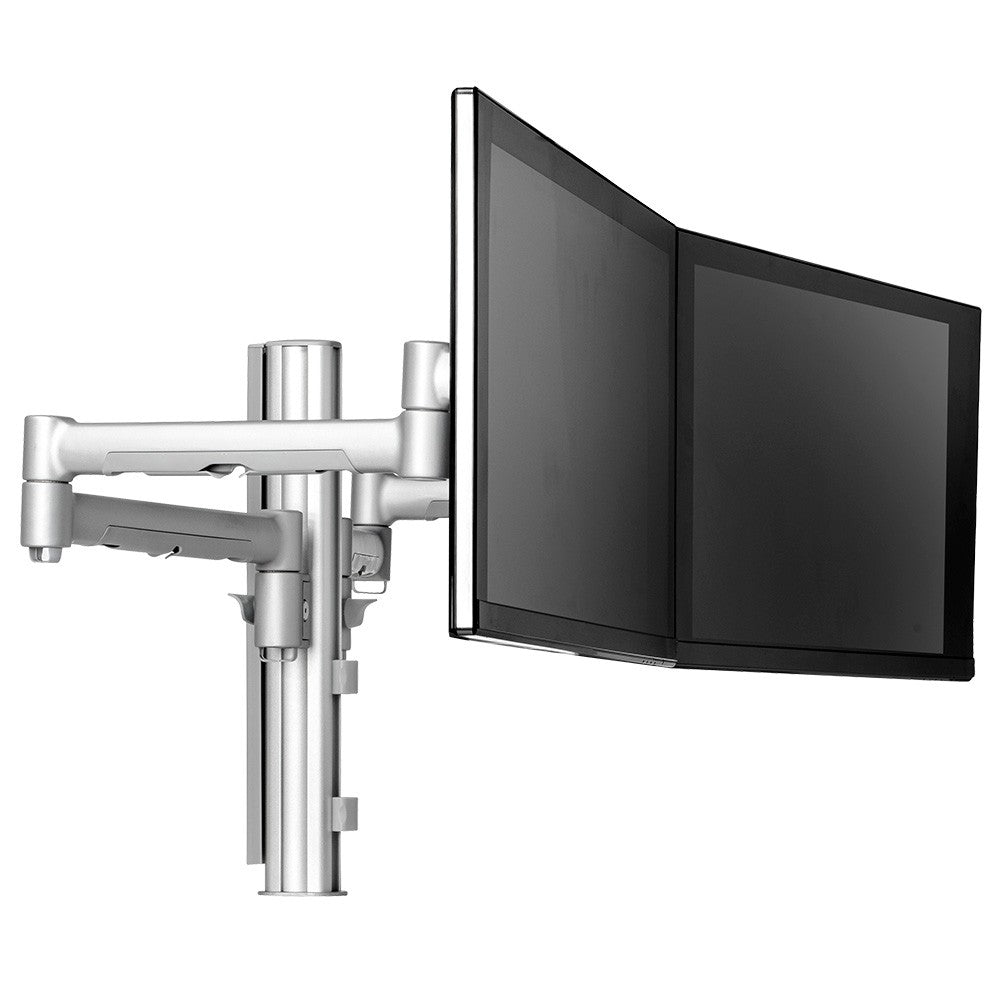

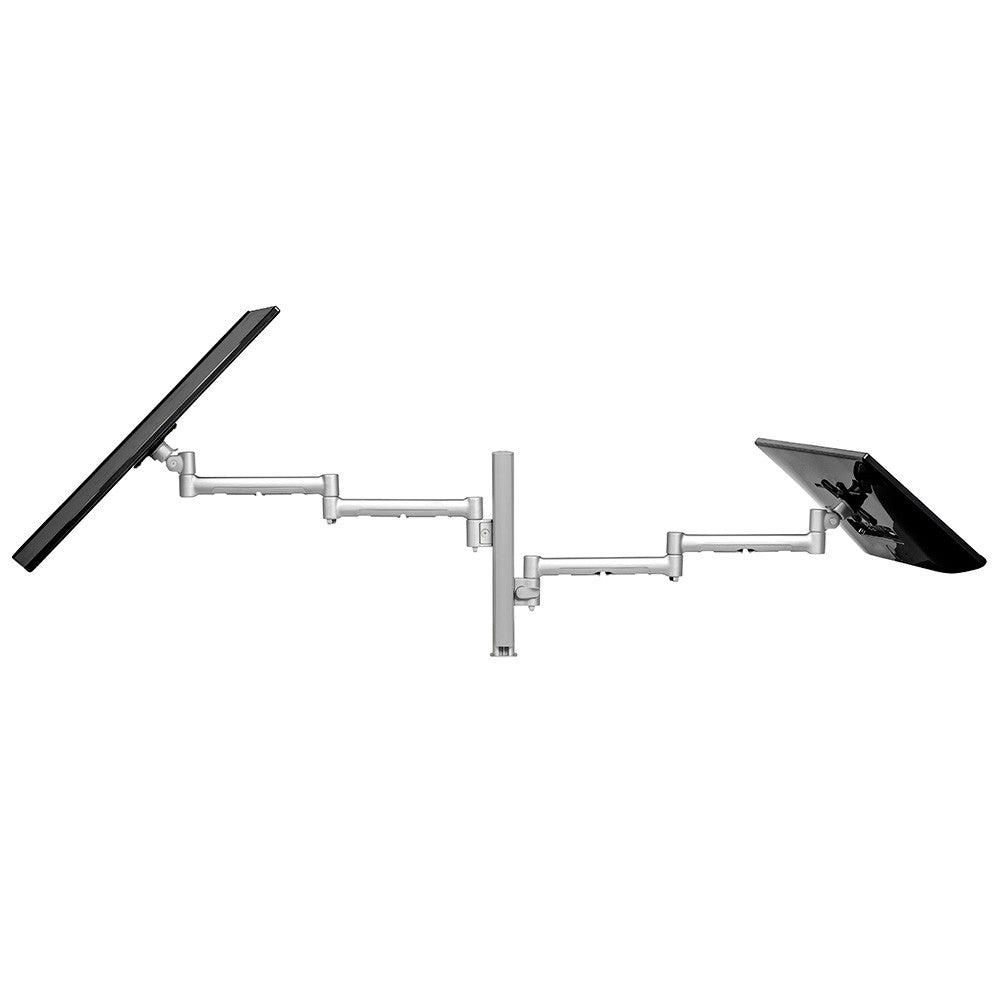

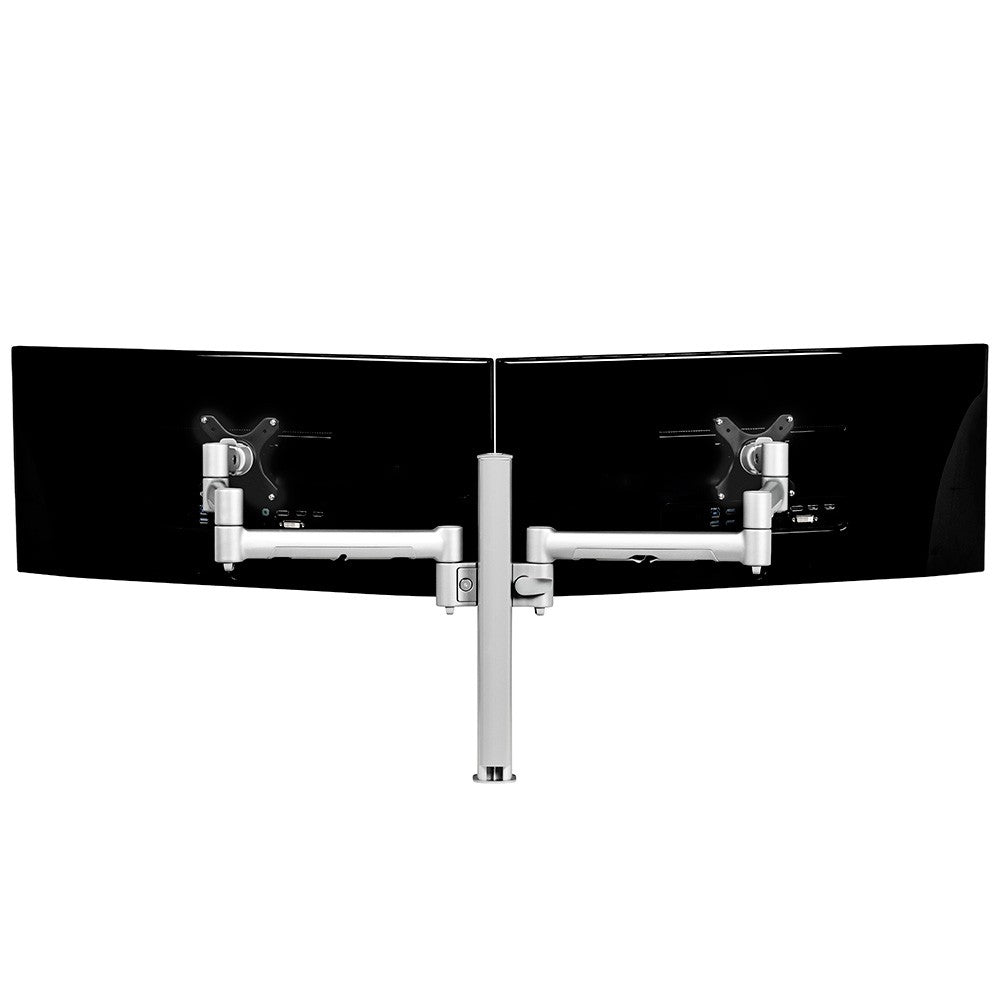

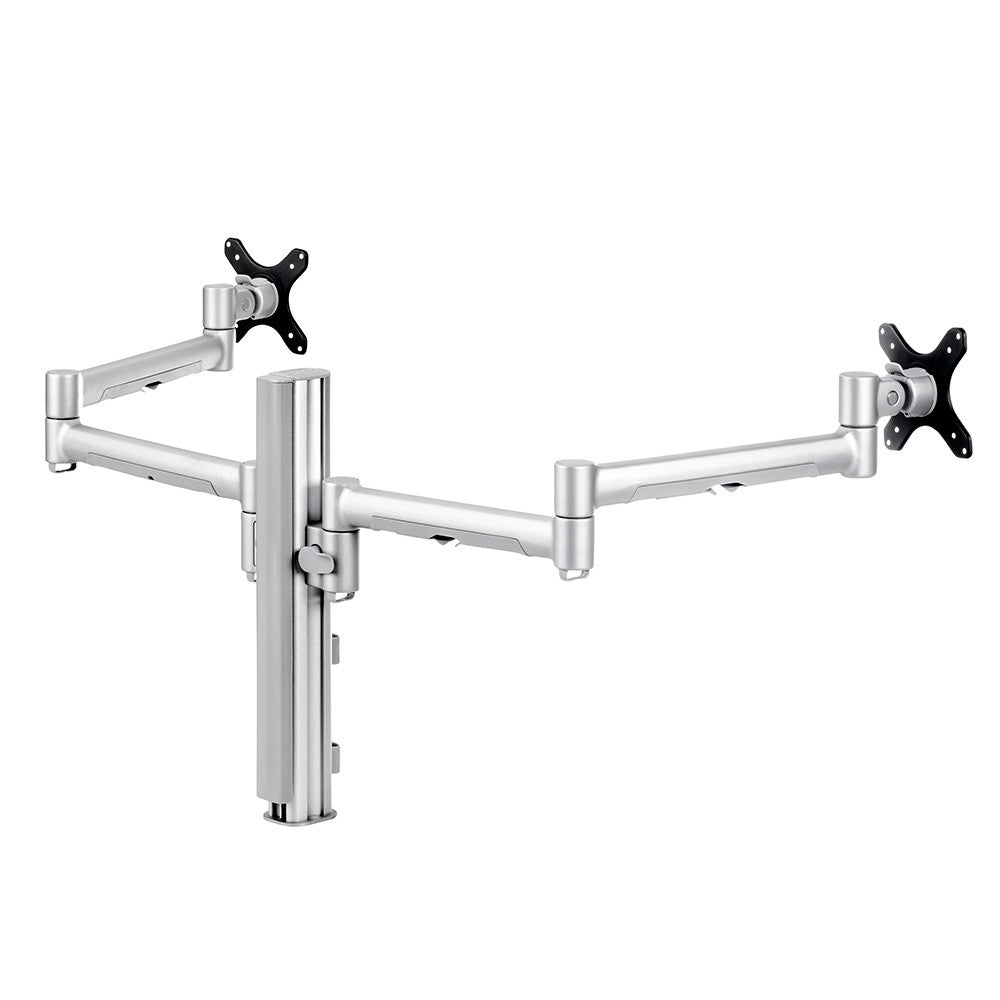

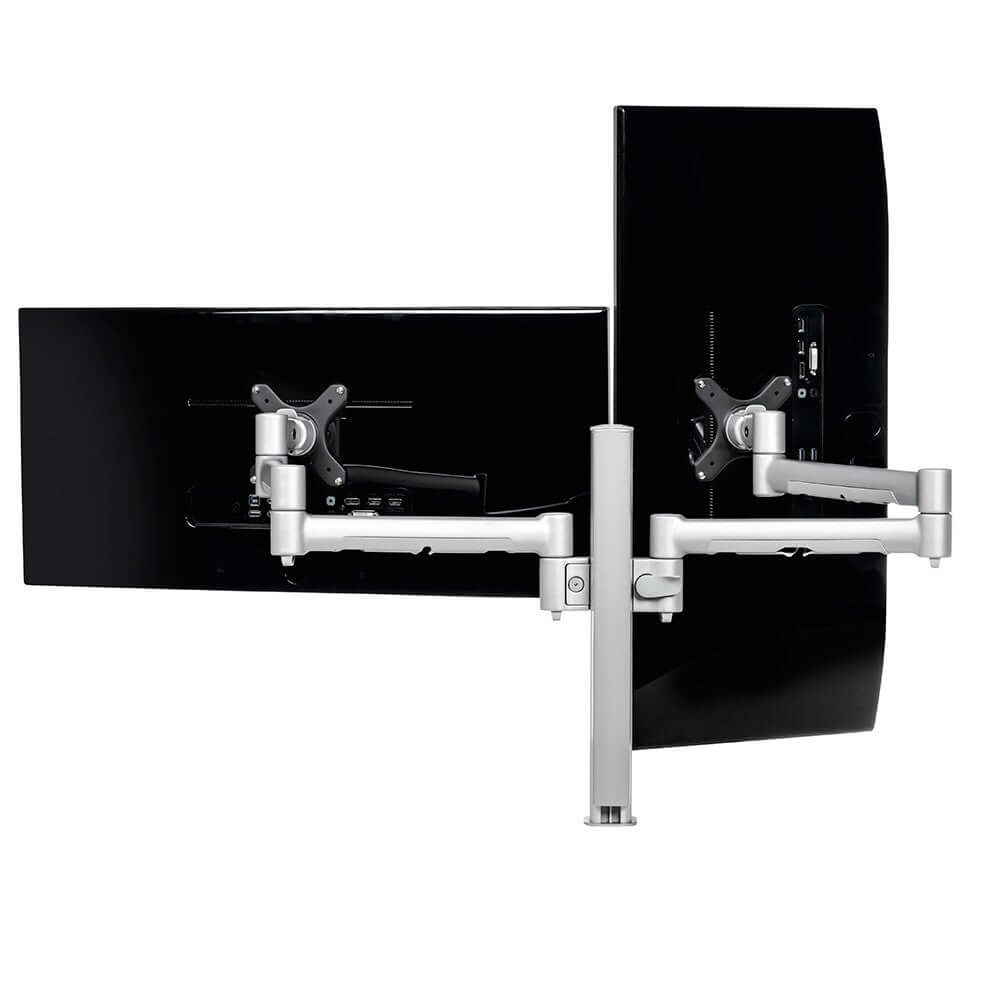

Systema AWMS-2-714-F-S Dual Monitor Arm




SYSTEMA AWMS-2-714-F-S dual display desk mount. Dual 710mm articulated arm on 400mm post in a side-by-side configuration.
Each arm supports displays up to 8kg. VESA 75x75mm & 100x100mm.
Display height adjustment, tilt, pan and portrait to landscape rotation.
Desk clamp mounting included.

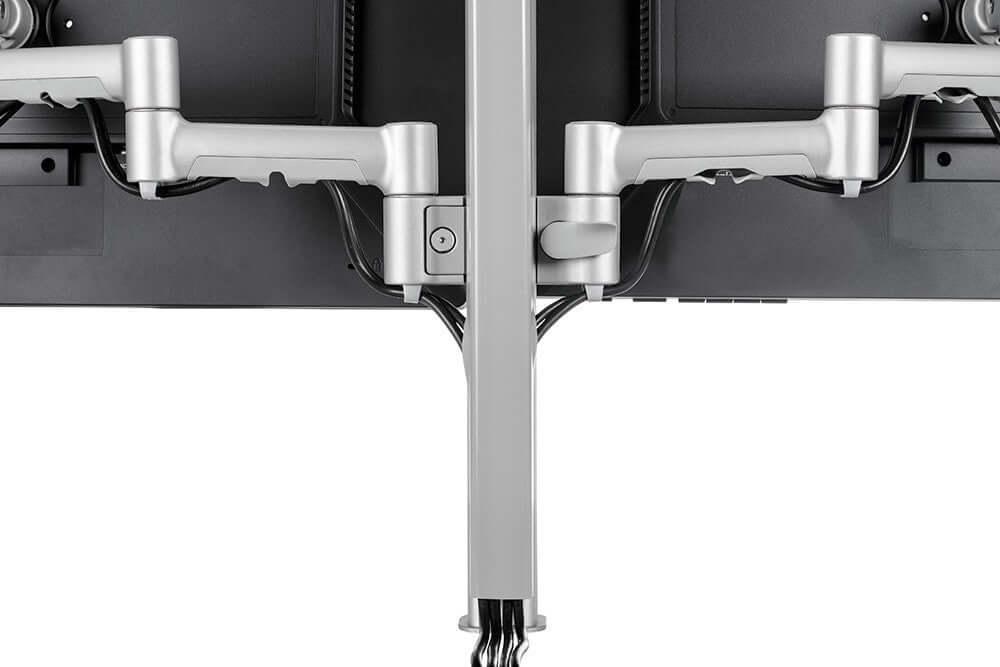

Can be upgraded to support additional displays. Advanced cable management

This solution is part of the SYSTEMA modular range and consists of the following individual components:
2 x AWM-A71-S display arm
1 x AWM-P40-S post
1 x AWM-FF-S desk clamp (F-Clamp)

Features
  • Three points of articulation enable full-motion display adjustment
  • Supports a wide range of displays up to 8kg in weight
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting included
  • Display tilt, pan, landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty
Specifications
  Weight Capacity   8 kg per display
  LCD Size   up to 34"
  Maximum Notebook Size   18"
  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   Check specification document
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   68 mm
