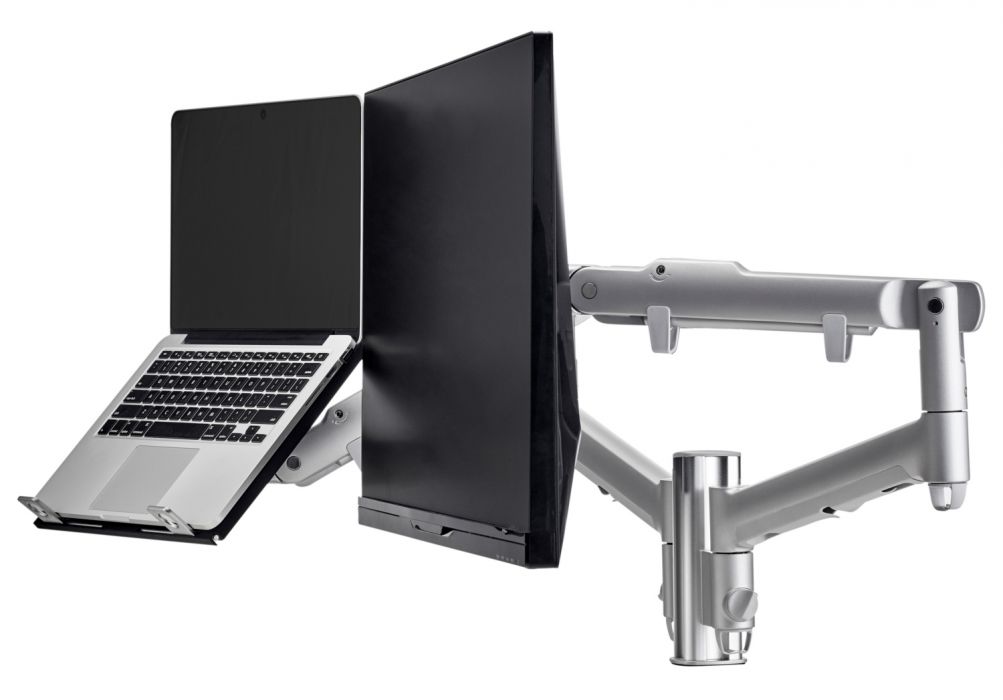

Systema AWMS-2-N4640-F-S Monitor and Notebook Arm




SYSTEMA range monitor and notebook arm combination on 400mm post. 2 x 460mm arms support displays up to 8kg.
VESA 75x75mm & 100x100mm. Display height adjustment, tilt, pan, portrait to landscape rotation.
Notebook tray non-slip ventilated support area is ideal for devices up to 18”.
All mounting hardware, desk clamp mounting option included. Advanced cable management.

This solution is part of the SYSTEMA modular range and consists of the following individual components:
2 x AWM-A46-S display arm
1 x AWM-P40-S post
1 x AWM-FF-S desk clamp (F-Clamp)

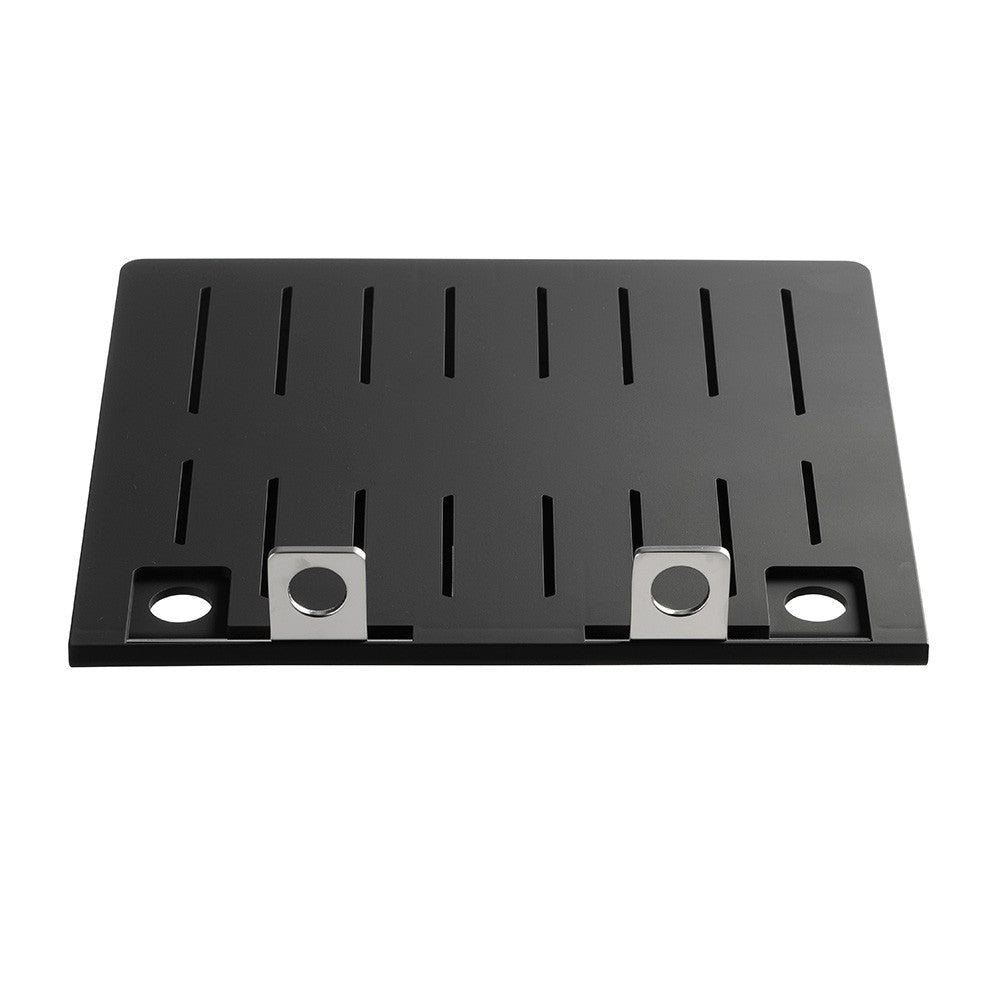

1 x SNTB notebook holder

Features
  • Supports a wide range of displays and notebooks up to 12kg in weight
  • Supports notebooks up to 18” in size
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting option included
  • Display and notebook tilt and pan adjustments with display landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty
Specifications
  Weight Capacity   12 kg
  LCD Size   up to 34"
  Maximum Notebook Size   18"
  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   Check specification document
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   68 mm
