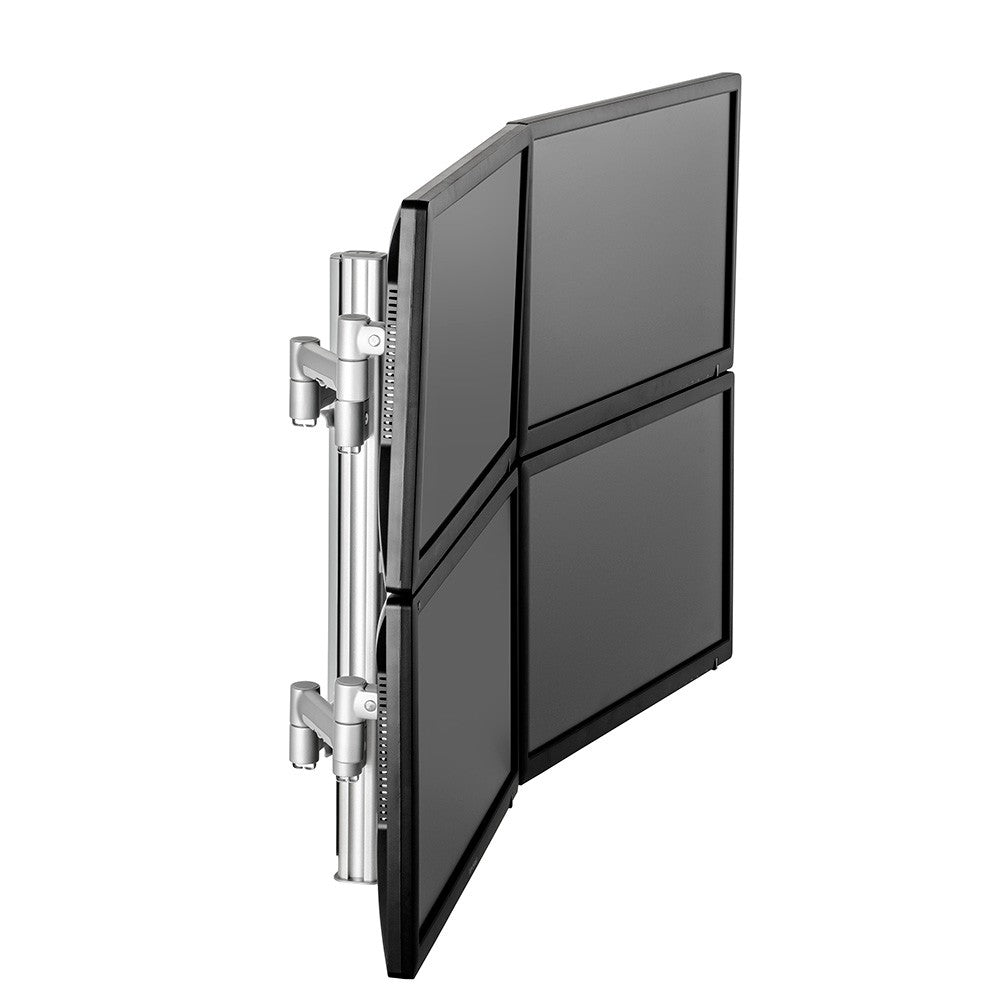

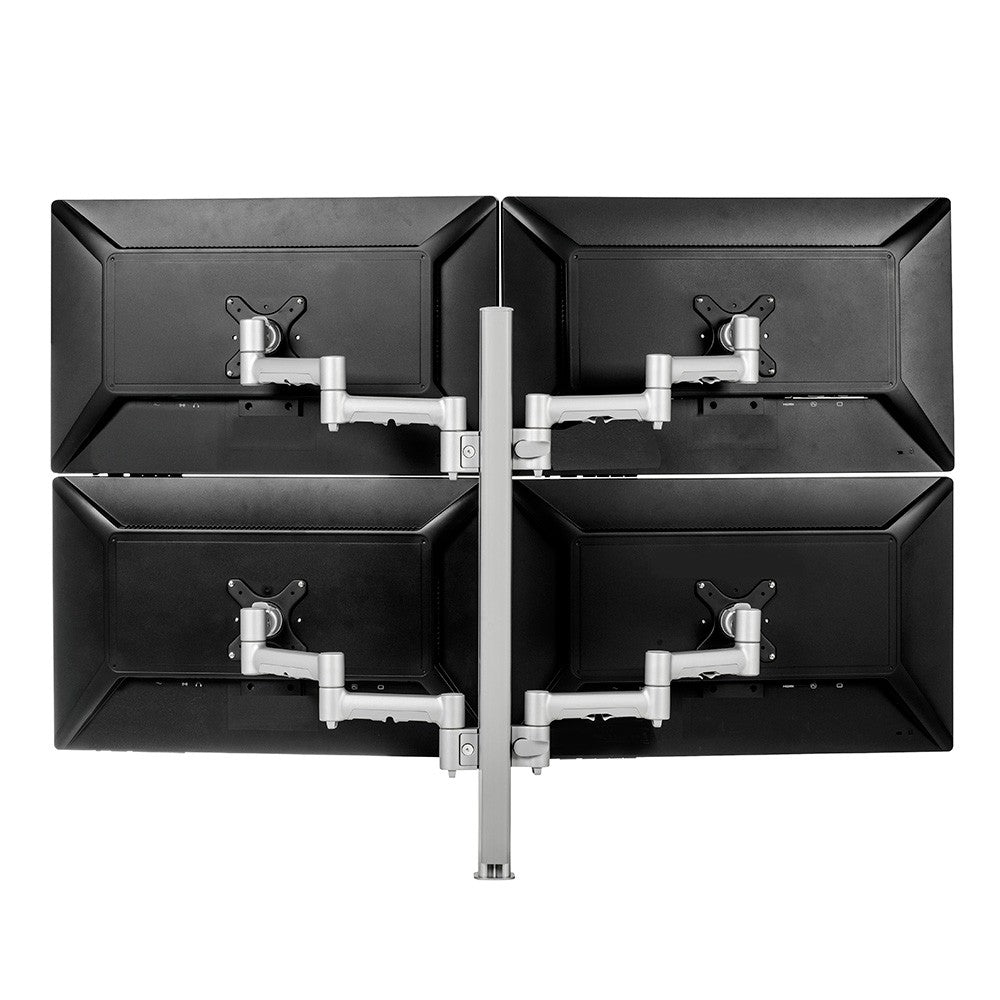

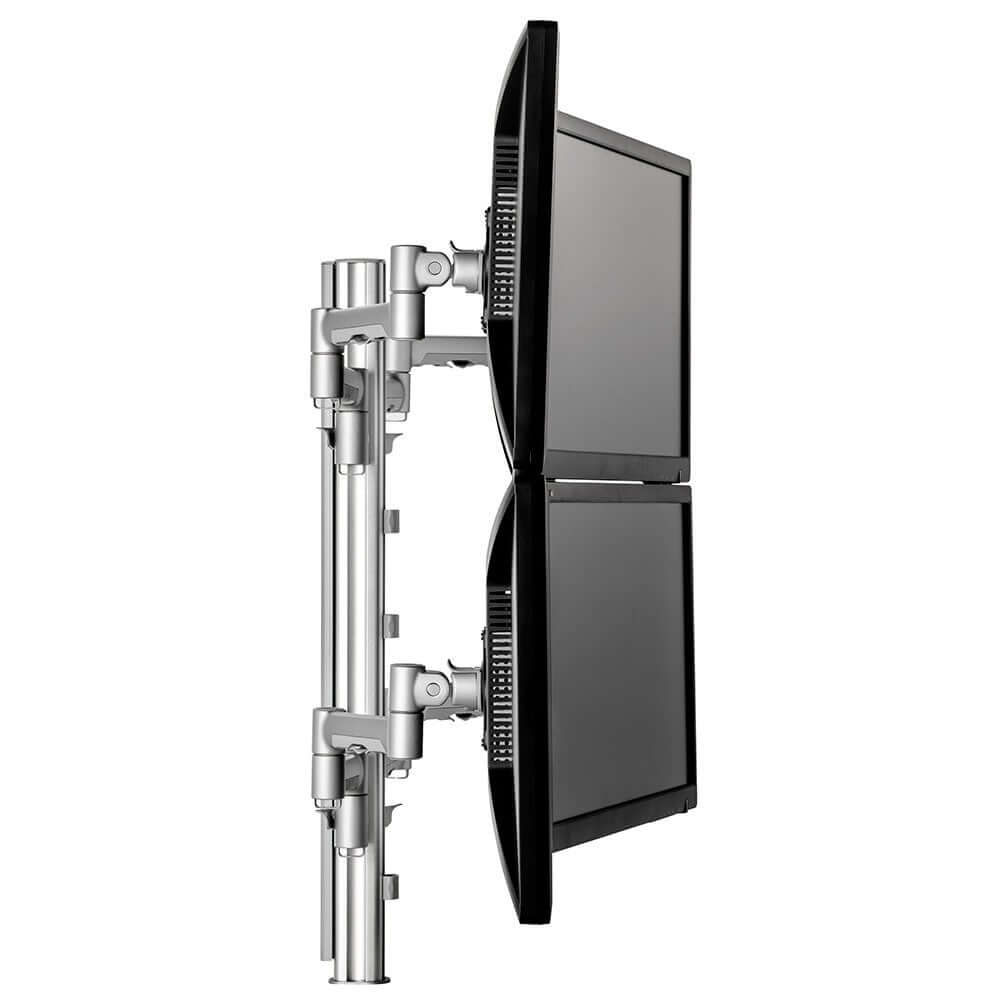

Systema AWMS-4-4675-H-S Quad Monitor Arm




SYSTEMA AWMS-4-4675-H-S desk mount for 4 displays on 750mm post. 4 x 460mm arms support displays up to 12kg.
VESA 75x75mm & 100x100mm. Display height adjustment, tilt, pan, portrait to landscape rotation.
All mounting hardware, desk clamp mounting option included.
Can be upgraded to support additional displays

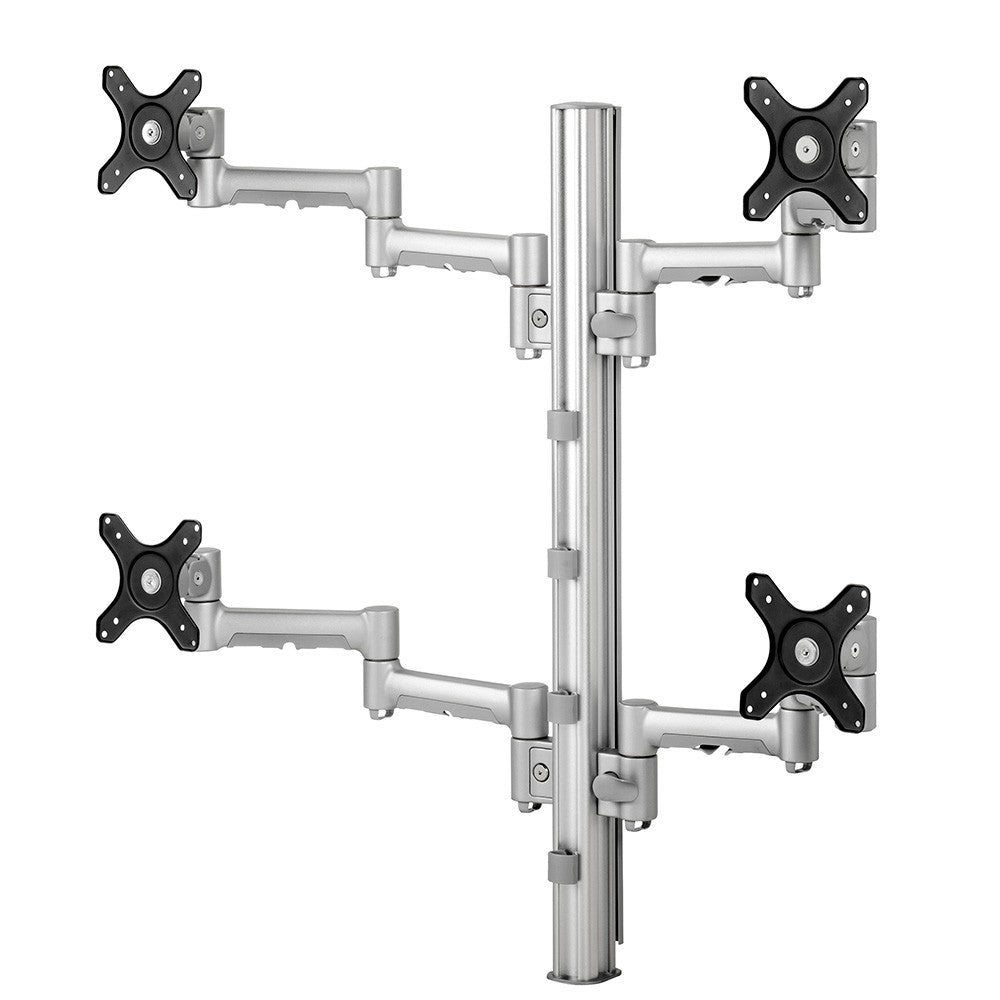

This solution is part of the SYSTEMA modular range and consists of the following individual components:
4 x AWM-A46-S display arm
1 x AWM-P75-S post
1 x AWM-FH-S desk clamp (heavy duty F-Clamp)

Features
  • Three points of articulation enable full-motion display adjustment
  • Supports a wide range of displays up to 12kg in weight
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting option included
  • Display tilt, pan, landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty

Specifications
  Weight Capacity   12 kg per display
  LCD Size   up to 30” in a landscape orientation or up to 22” when both displays are installed in portrait mode
  Maximum Notebook Size   18"
  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   Check specification document
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Bolt through, Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   68 mm



Downloads
Download Product Info
Product Info
Download User Manual
User Manual
Download Illustrations
Illustrations
