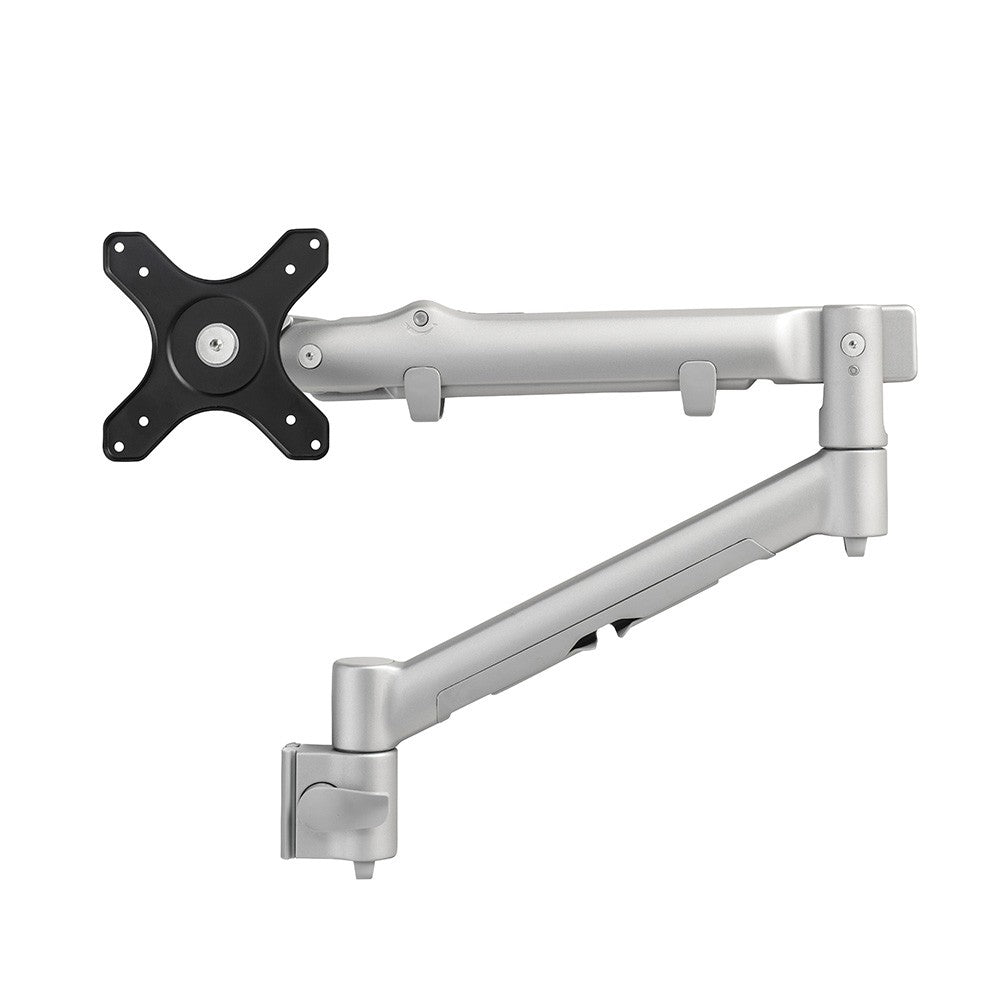

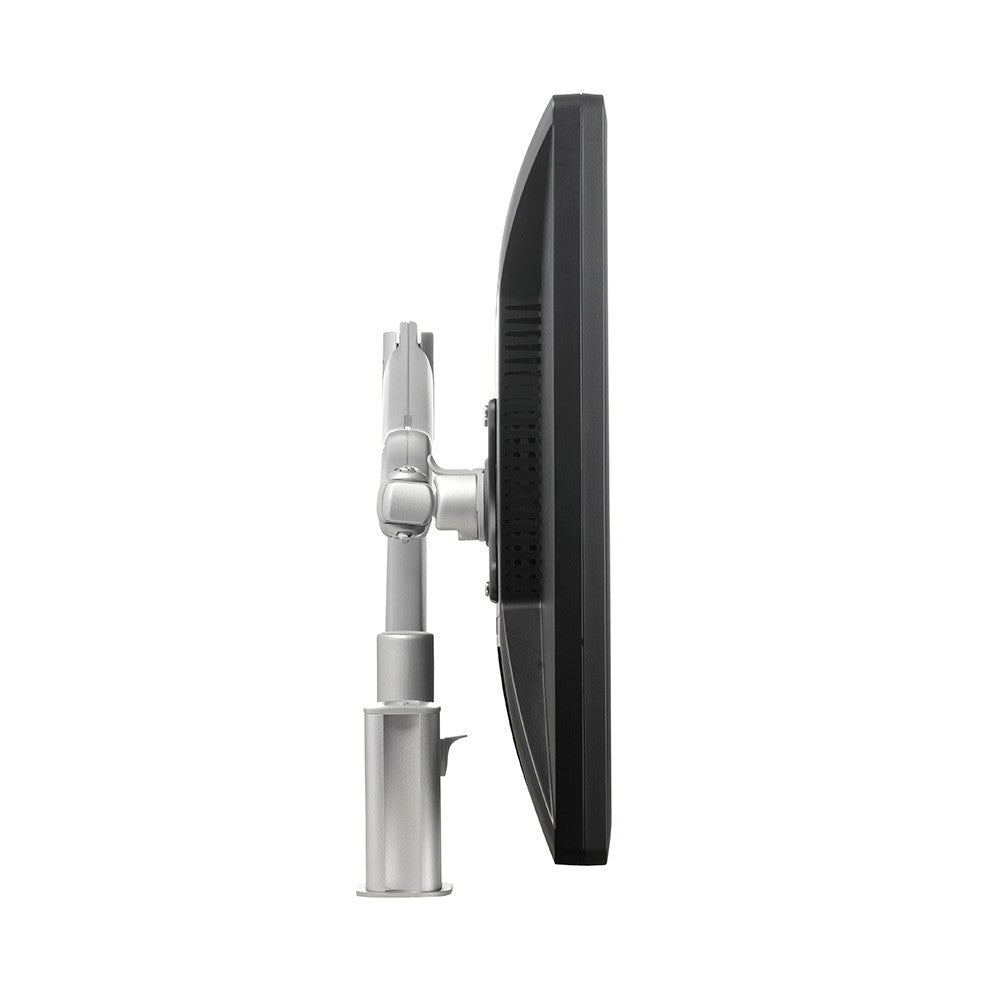

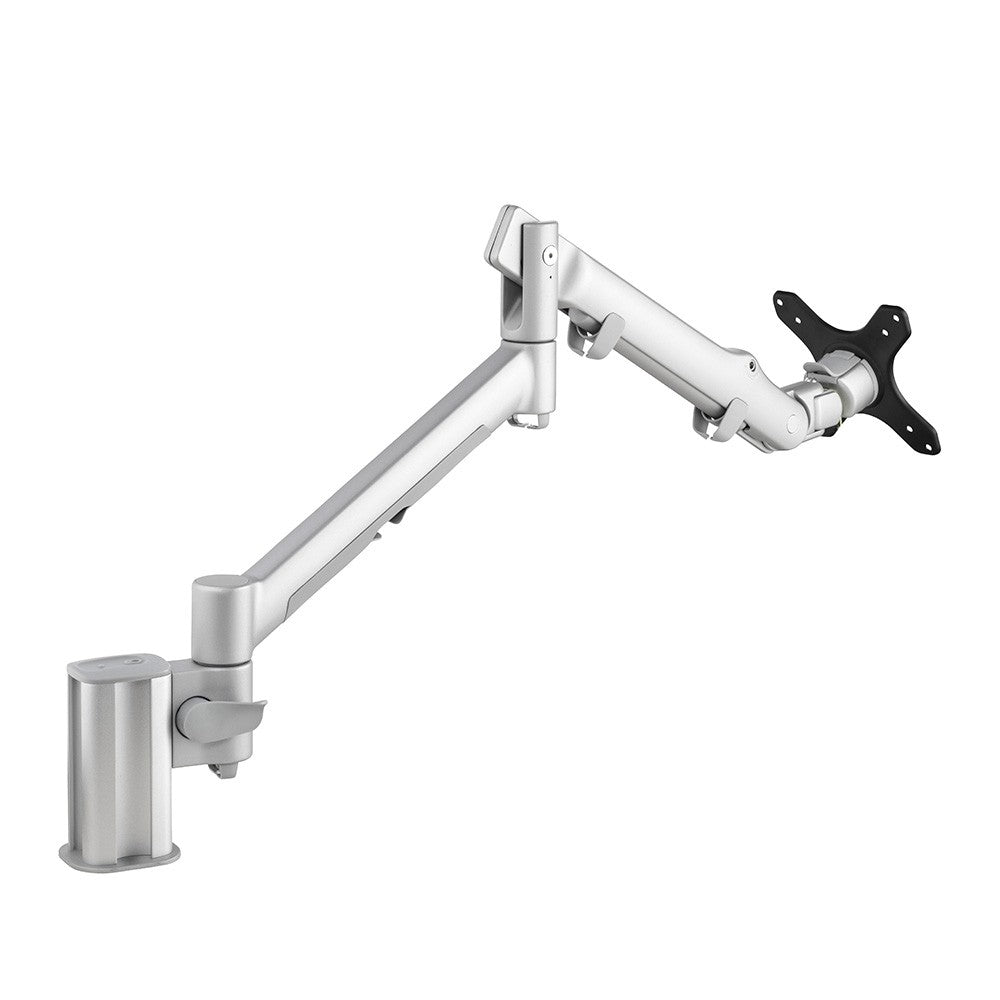

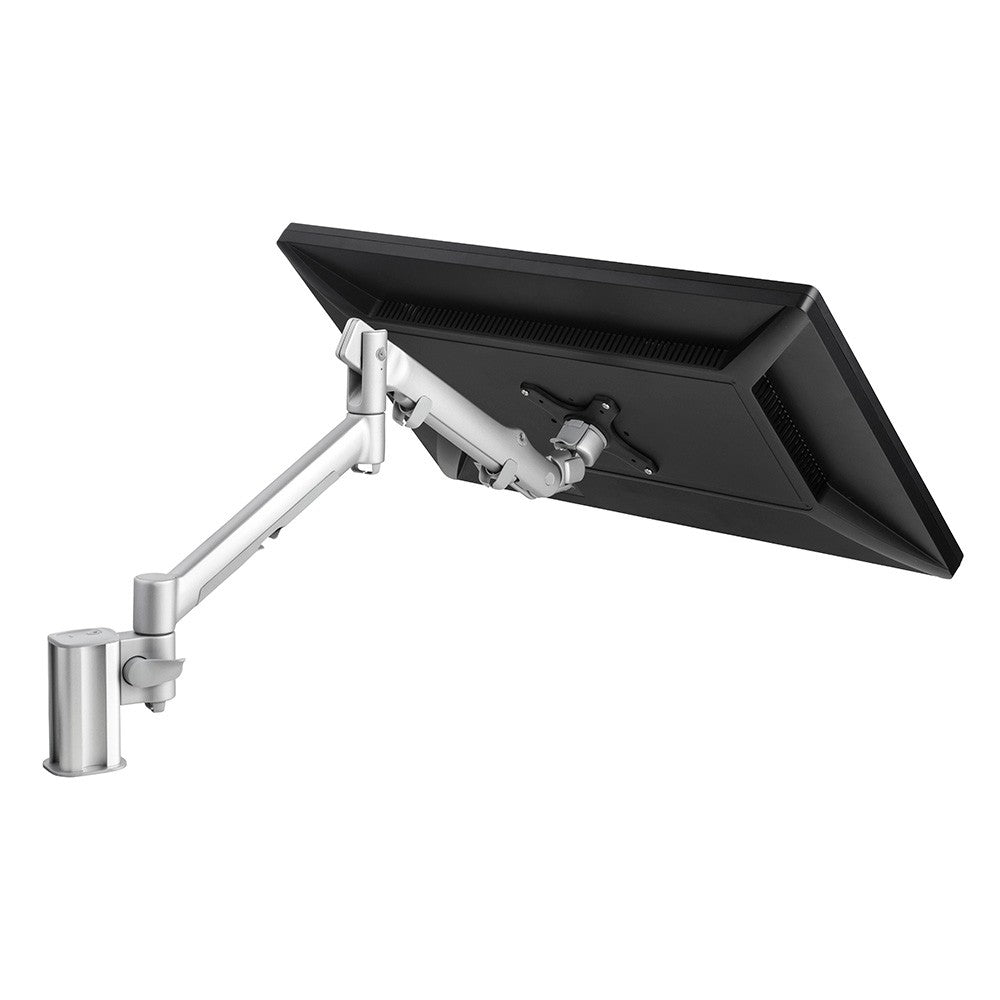

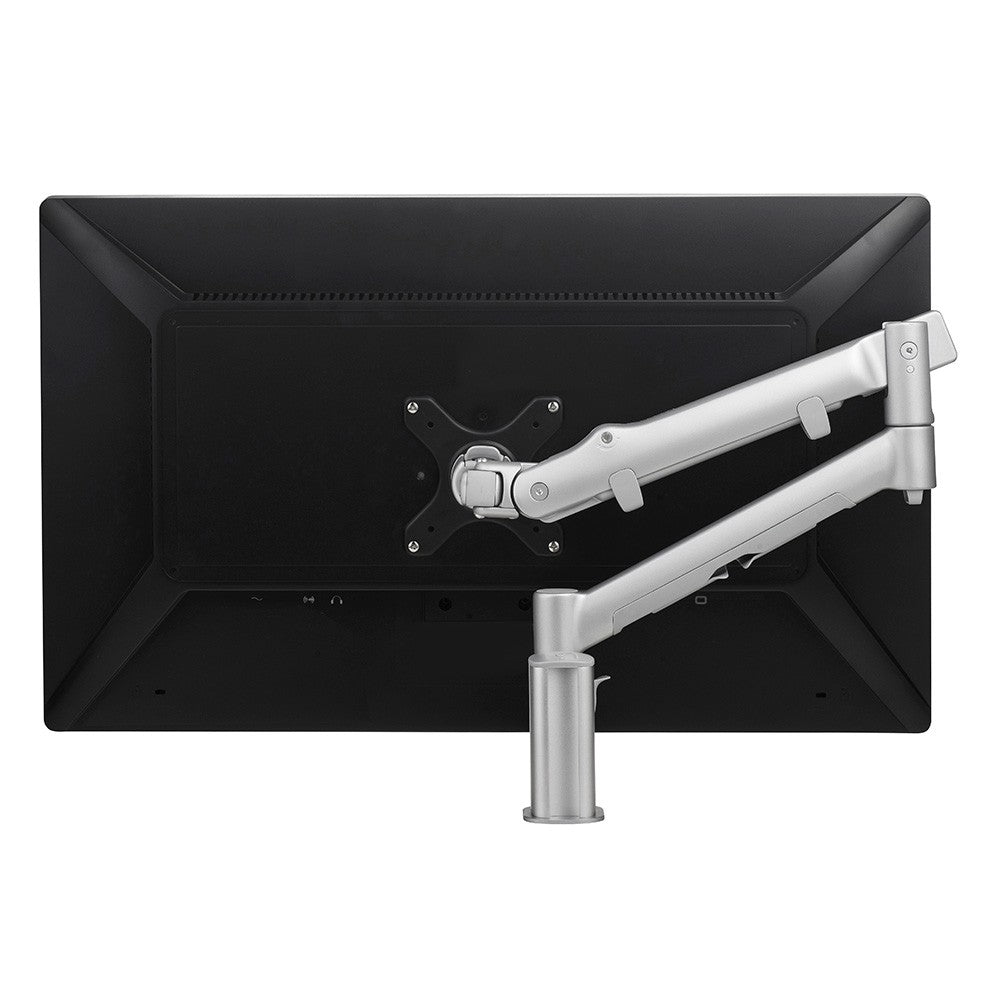

Systema AWMS-D13-F-S Spring Single Monitor Arm




SYSTEMA range spring-assisted monitor single display arm on 135mm post.
Supports displays weighing from 1.5kg up to 8kg. VESA 75x75mm & 100x100mm.
Display height adjustment, tilt, pan, portrait to landscape rotation – all are adjustable from a seated position.
Visual gauge to assist with multiple installations. All mounting hardware, desk clamp mounting options included.

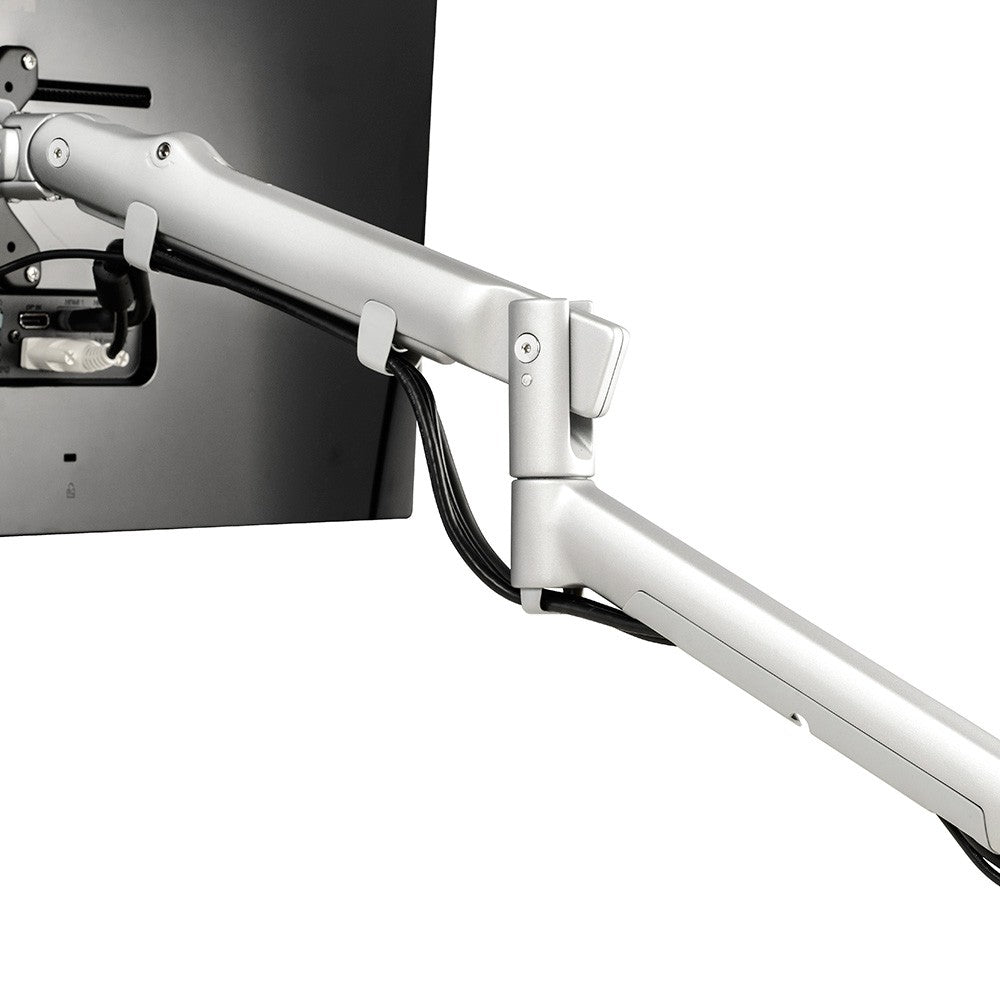

Can be upgraded to support additional displays. Advanced cable management

This solution is part of the SYSTEMA modular range and consists of the following individual components:
1 x AWM-AD dynamic arm
1 x AWM-LC channel clamp
1 x AWM-P13 135mm post
1 x AWM-FF-S desk clamp (F-Clamp)

Features
  • Three points of articulation enable spring assisted full-motion display adjustment
  • Supports a wide range of displays from 1.5kg to 8kg in weight
  • VESA mounting hole pattern: 75 x 75 and 100 x 100; can support 200x100 via additional adaptor plate AC-AP-2010
  • 8mm hardened steel Desk Clamp mounting option included
  • Display tilt, pan and landscape to portrait rotation

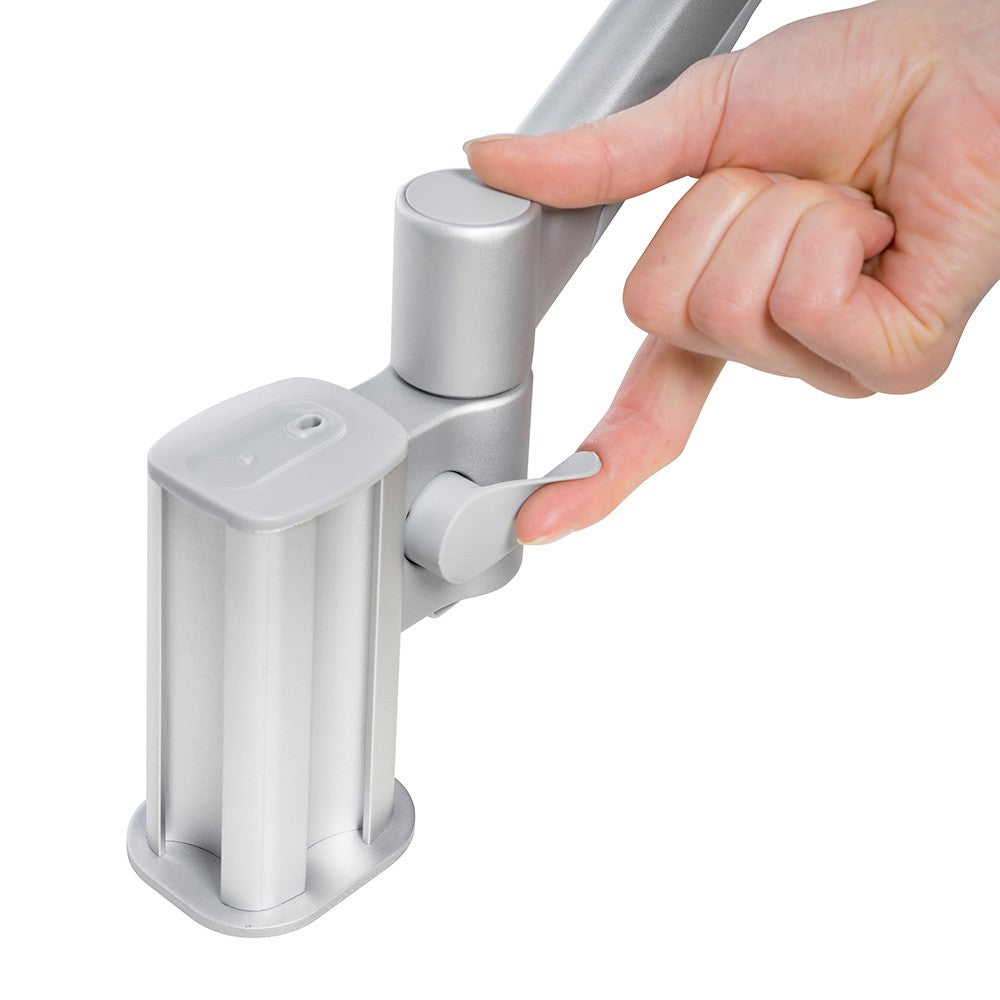

  • Spring tension visual gauge and quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty


Specifications
  Weight Capacity   1.5 to 8 kg

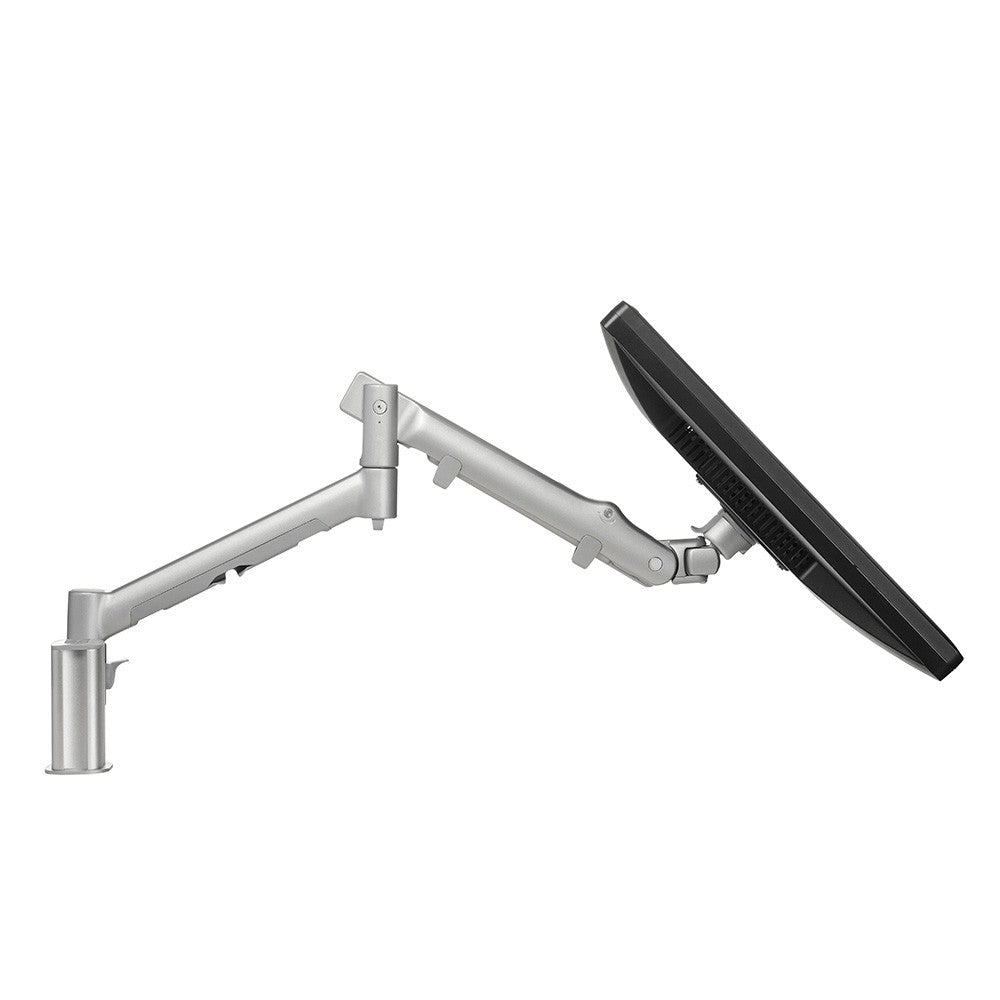

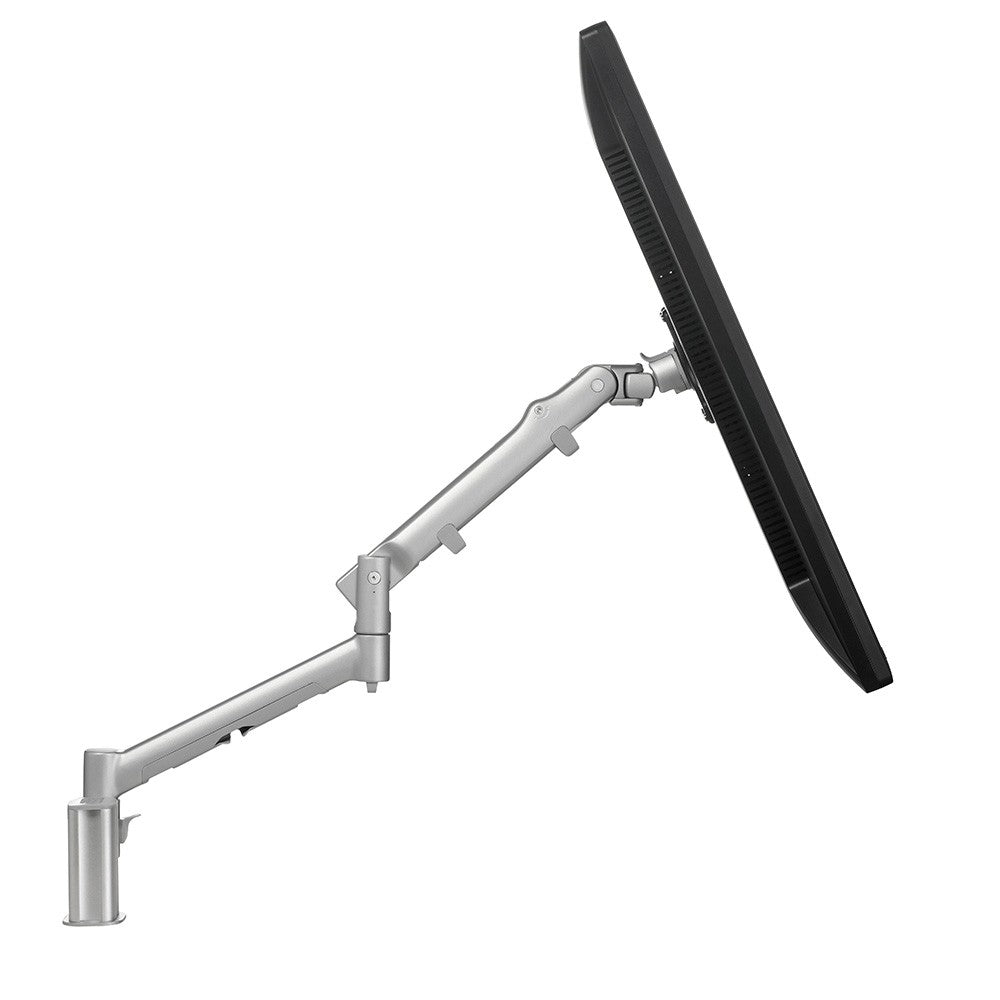

  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   678 mm
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Bolt through, Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   65 mm
Downloads
Download Product Info
Product Info
Download User Manual
User Manual
Download Illustrations
Illustrations
