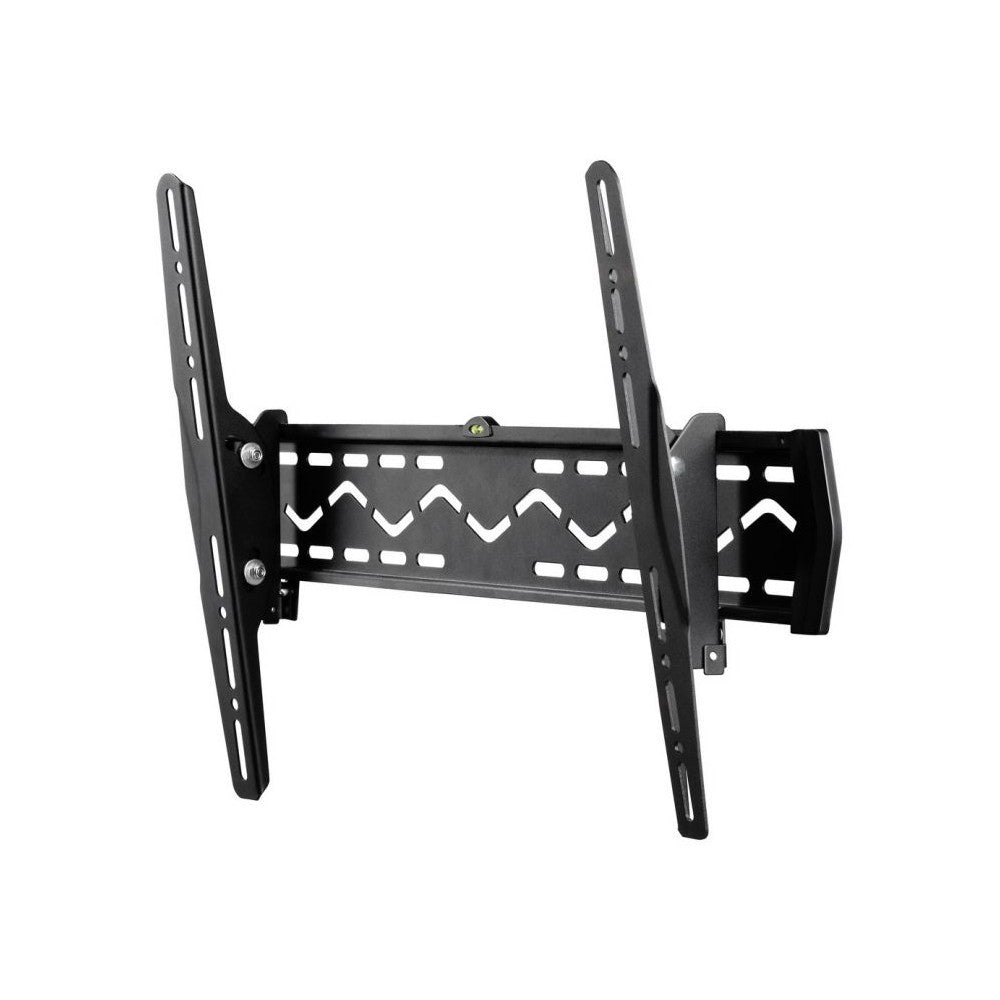

Telehook TH-3060-UT Tilt Wall Mount




Tilt mount. Max load 50 kg. VESA up to 600 x 405

The TH-3060-UT is a tilting wall mount solution for the latest generation of consumer LED/ LCD/Plasma displays. If you have a 32" or larger flat screen TV under 50 kg that you wish to mount with an adjustable viewing angle or added security then this may be the product for you. The black finish provides a nice look while quality construction ensures a lifetime of worry-free operation. Universal VESA support ensures a high level of display compatibility. A mounting plate affixes directly to the wall while brackets attach to the display using screws included in the pack. After cabling the display is lifted, slotted and (optionally) locked into place. The wall plate incorporates a spirit level and slotted holes for easy alignment while the brackets allow for horizontal and tilt adjustment post installation.

Features
  • Quality steel construction with a durable powder coat finish
  • Designed for displays of up to 50 kg with mounting patterns from 100 x 75mm to 600 x 405mm

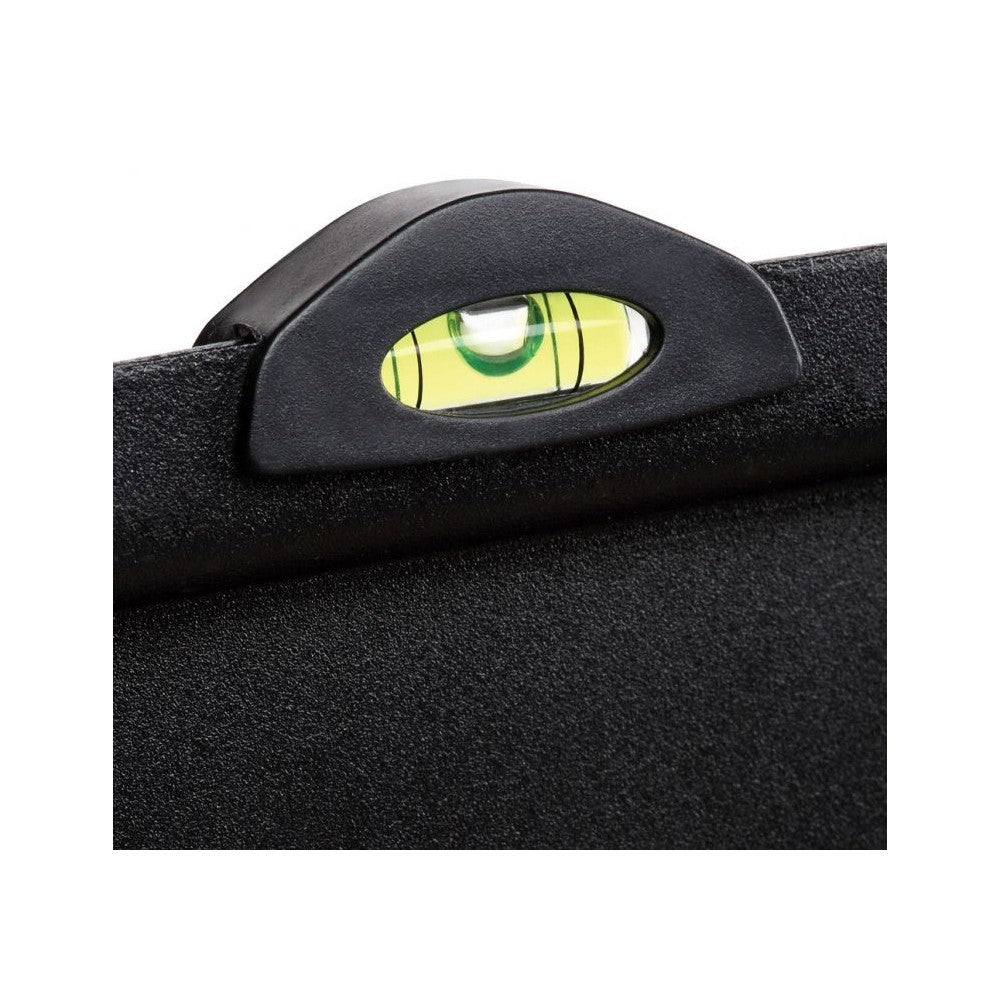

  • Designed for easy installation with in-built spirit level and slotted mounting holes for alignment
  • Designed for flexible operation with adjustable horizontal positioning post-installation.

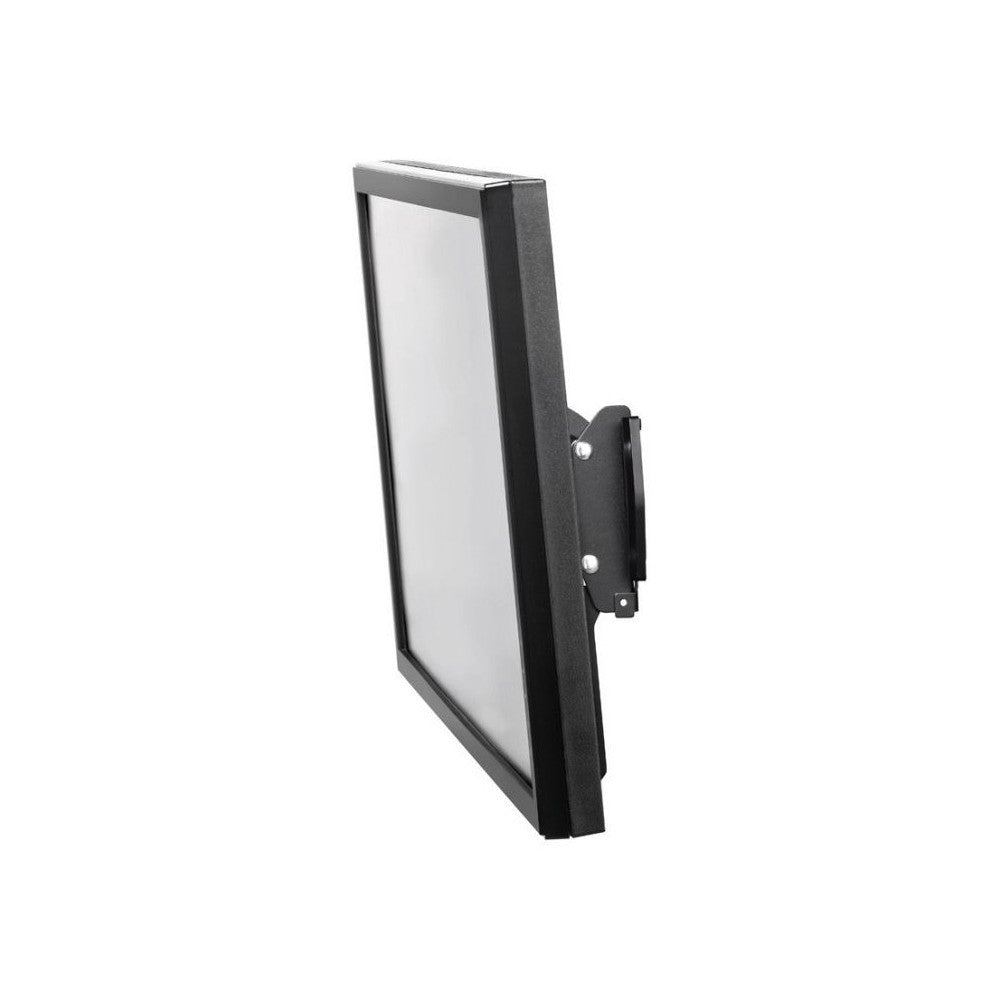

  • Provides for optimum viewing +15/-5° forward and backward tilt*

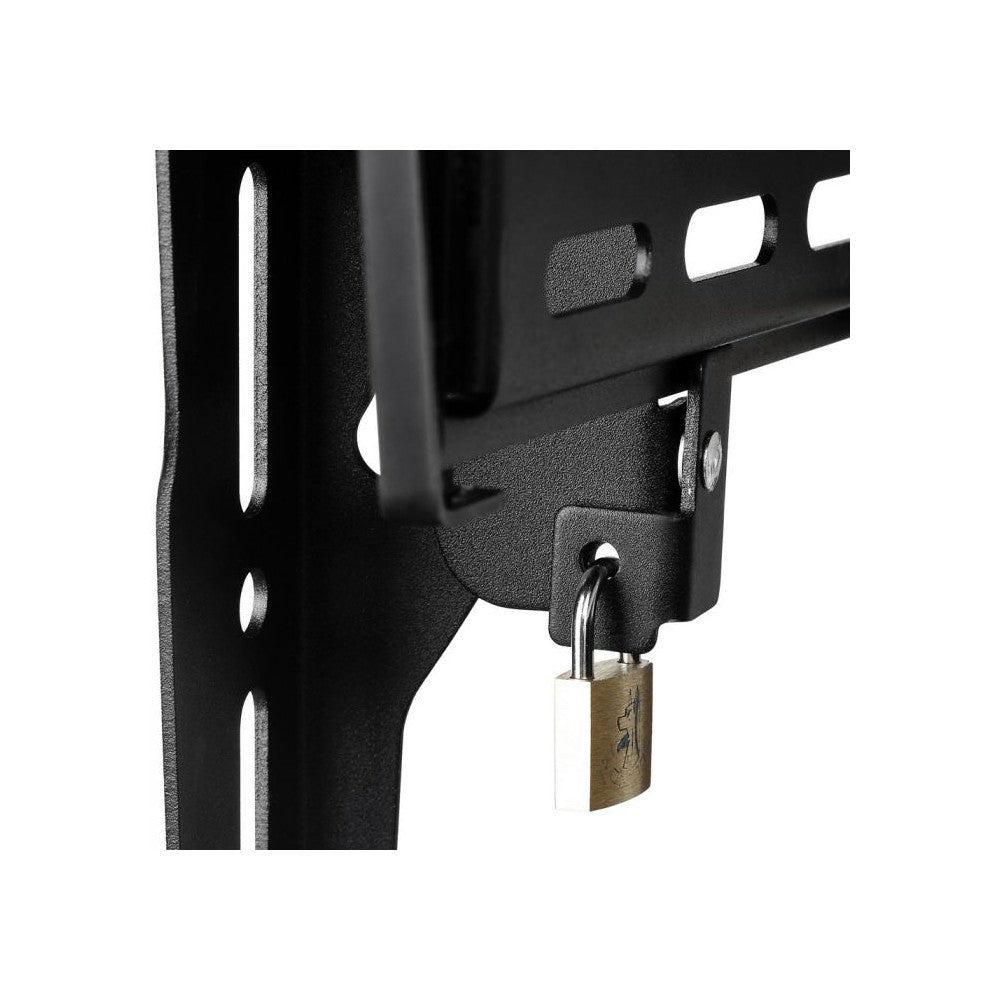

  • Designed for enhanced safety with a lockable** display bracket
  • Suitable for attachment to timber stud and masonary walls***
  • Supplied with mounting hardware and installation guide.
  • 5 year warranty.

* Maximum adjustment is 15 degrees forward and 5 degrees back. Larger displays may have a reduced adjustment due to the screen/bezel overhang

** Lock not included

*** Drywall / platerboard attachment is possible however additional dry wall anchors will be required

Specifications
Weight Capacity 50 kg
Tilt +15/-5° forward and backward tilt
Screen Rotation No
Pan
Horizontal levelling adjustment 460 mm
Display Compatibility 100 x 75 mm to 600 x 405 mm
Desk Mounting Type Wall mount

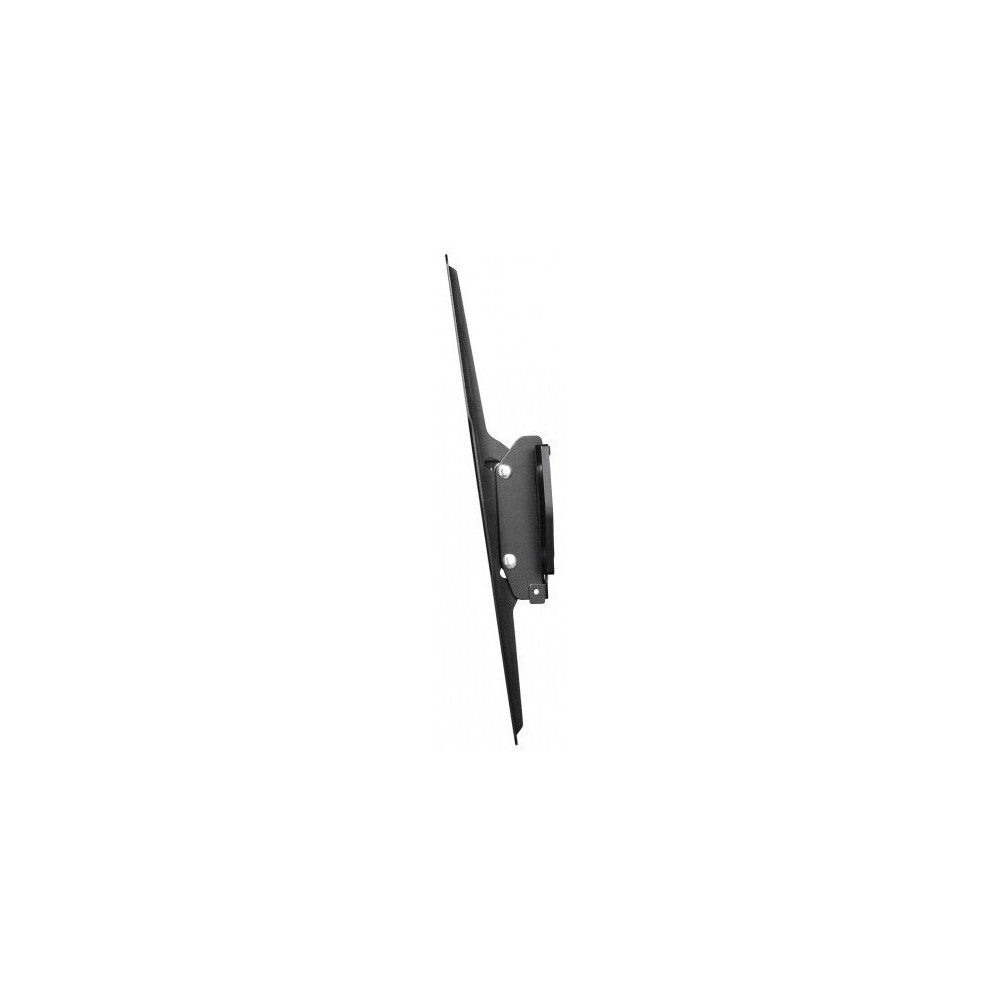

Minimum distance from wall 58 mm
