Visidec Focus Articulated Arm




Sleek and contemporary design, It’s elegant polished aluminum finish adds style and functionality to any workspace.

The screen can be pulled out 413mm for the ideal focal length and rotated 360° around the pole. The optimum viewing angle can also be achieved with a 70° up and 70° down tilt, and pan of 180°. Versatility extends to monitor choice, thanks to our FlexiStar mechanism that allows two different mounting hole patterns. Cables are cleverly managed internally for a clean look and to reduce clutter.

Features
  • Supports a maximum weight of 8kg.
  • Supports mounting hole patterns: 75mm x 75mm; 100mm x 100mm.
  • Offers a wide range of movement via 3 pivot points.
  • 360° rotation around pole.
  • Adjustable tilt: 70° up and 70° down.
  • Adjustable pan: 90° left and right, total 180°.
  • Portrait to landscape rotation.

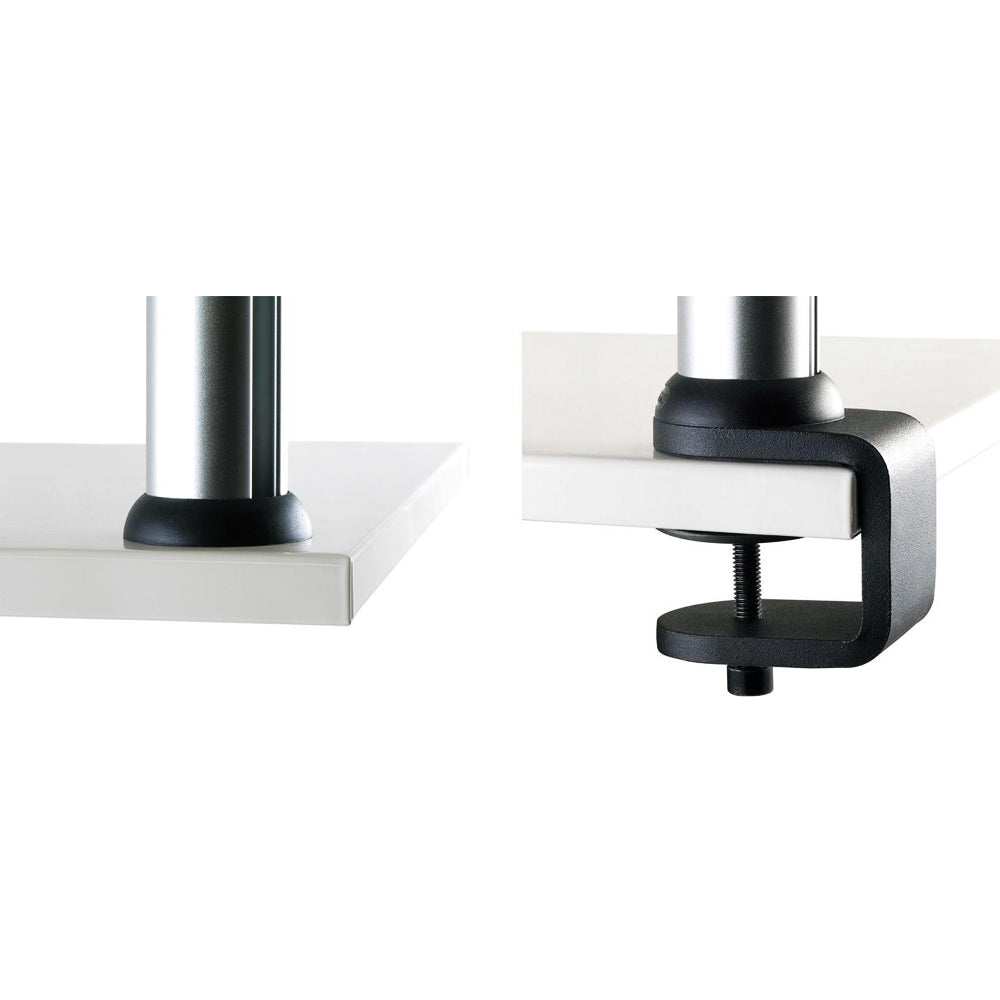

  • Includes Bolt Through and Desk Clamp mounting options.

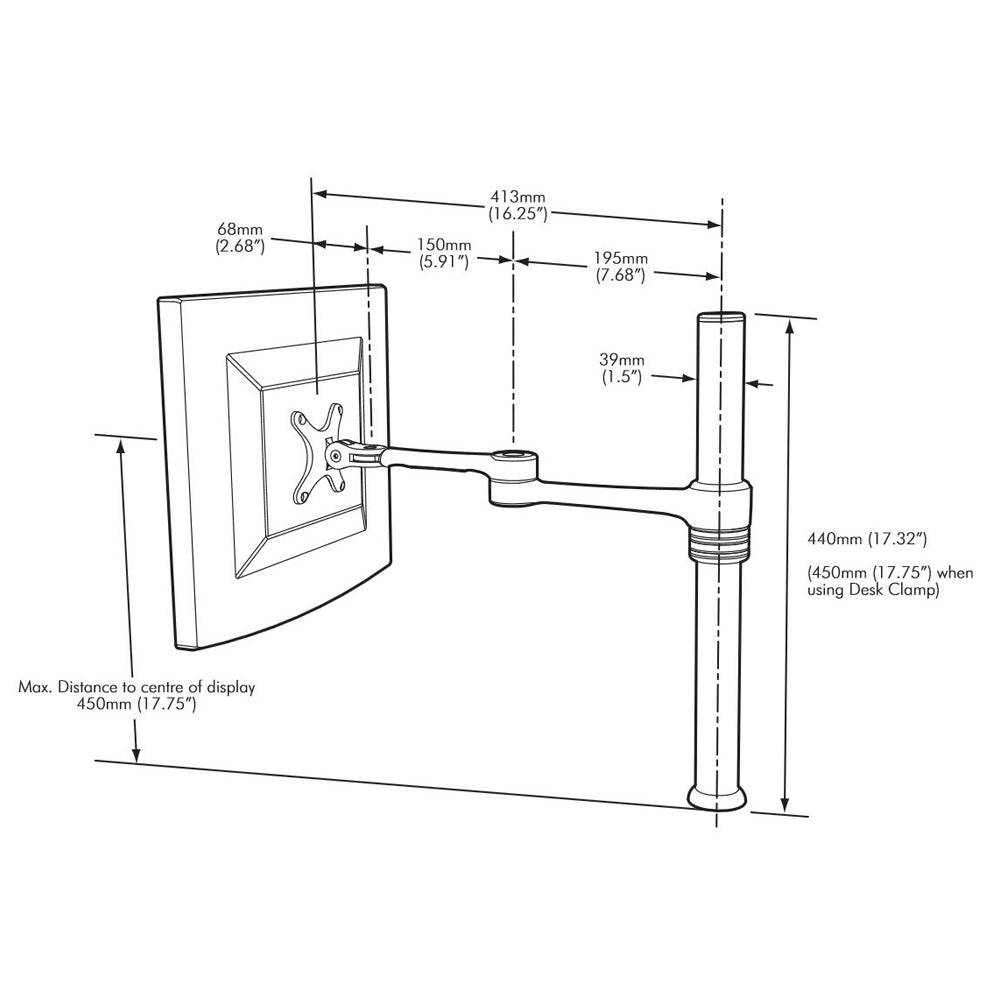

  • Arm maximum reach: 413mm.
  • Display height adjustment range: 345mm.
  • Advanced cable management.
  • Comes with all mounting hardware.
  • 10 year warranty.
