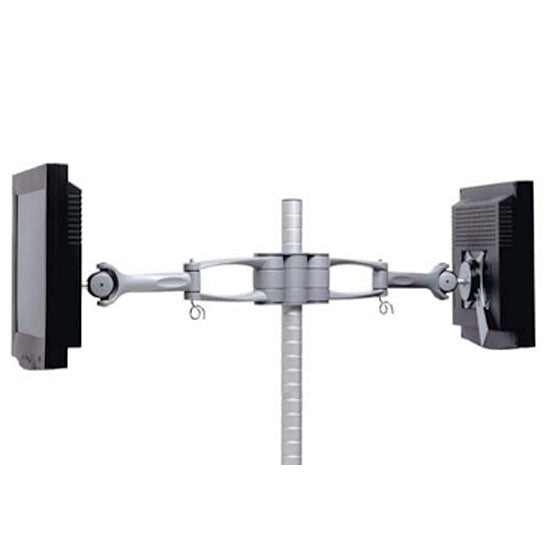

Wishbone Dual Monitor Arm

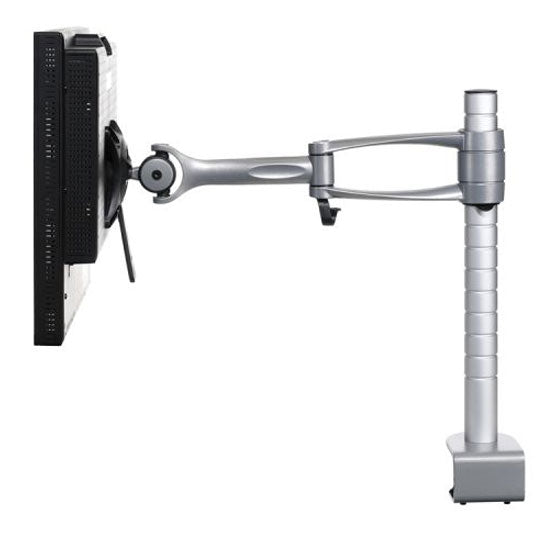

Wishbone is a design classic, it has won design and product innovation awards the world over. It is a true system arm available in three reach lengths which make it the ideal choice for multi-screen applications such as trading floors and control rooms. Wishbone can be installed at different heights to suit different environments and users.

Features
  • The Wishbone Dual LCD arm can be installed at different heights to suit different user preferences and environments
  • Post system can be optionally extended to increase the monitor height even more
  • Can be positioned side-to-side or back-to-back
  • Constructed from die-cast aluminium & glass- reinforced acetyl plastic
  • Suited to multi-screen environments
  • System arm available in three lengths
  • Flexible arrangements due to wishbone post system
  • Quick release as standard – the screen can be removed in seconds
  • Cable management facility
  • Easy to install

Specifications
Weight Capacity   up to 12 kg per screen
LCD Size   up to 24"
Tilt   100°up / down
Rotation   90° for portrait / landscape viewing
Pan   180° left / right
Lift   both monitors move in tandem
Arm Extension   425 mm
Post Height   400 mm
Colour   Silver
Display Compatibility   VESA 75/100mm
Mounting   Desk clamp - for desk < 38 mm thick
Bolt through - for desk < 35 mm thick

Technical Drawing
For technical drawing please view in gallery or download PDF file.
