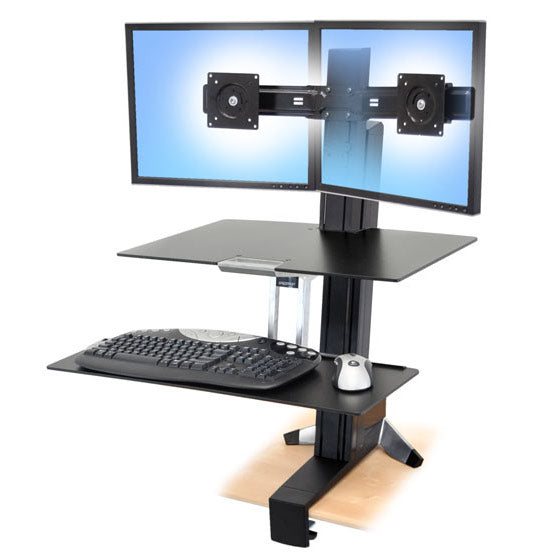

Ergotron WorkFit-S Dual with Worksurface



Transform any surface into a personalised height-adjustable desk. Get affordable ergonomics!

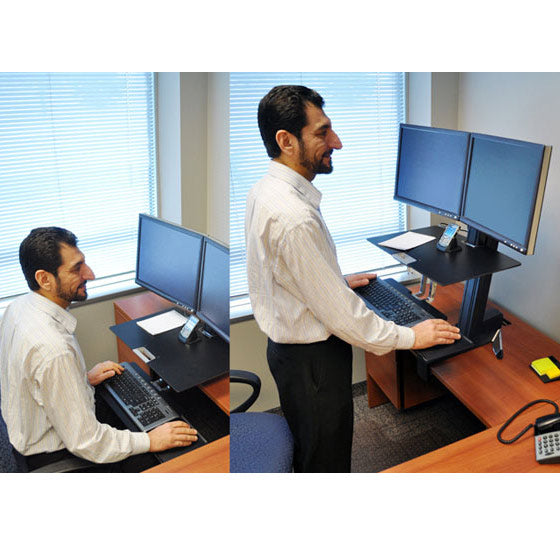

Change from a sitting to a standing position whenever you want. This sit-stand workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

Product Code: 33-349-200

Features
  • Includes height-adjustment column, desk clamp, crossbar, two (2) LCD pivots, worksurface, large keyboard tray
  • Desk Clamp attaches to surface edge 1.2 to 6 cm thick
  • NOTE: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
  • Worksurface Dimensions (H x W x D): 6 x 585 x 380 mm
  • Keyboard Tray Dimensions (H x W x D): 6 x 620 x 236 mm
  • Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Patented Constant Force (CF) lift-and-pivot motion technology
  • NOTE: Computer systems mounted on a WorkFit-S may require extra long power and video cables in order to span between standing and sitting heights

Specifications
Weight Capacity ≤ 11.3 kg
LCD Size ≤ 22" *
Tilt -
Rotation 360° for portrait or landscape viewing
Material High quality aluminum alloy
Mounting Option Desk Clamp attaches to surface edge 1.2 to 6 cm thick
Pan -
Lift 580mm ‡
Display Compatibility VESA 75/100mm

*Maximum outside width of display is 56 cm when displays are 5 cm thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness.

† Weight Capacity:
Maximum total load on height-adjustment assembly ≤ 11.3 kg. LCD weight range = 2.7 – 6.3 kg, worksurface 2.3 kg, keyboard tray 2.3kg. For proper operation the total maximum weight when added together should not exceed 11.4 kg.

‡ Lift Range:
LCD and keyboard adjust 46 cm in tandem; LCD adjusts 12.2 cm independently; maximum LCD height adjustment = 58 cm. The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 13 cm.

Technical Drawing
For technical drawing please view in gallery or download PDF file.


Eco Info

Healthy Products in Every Way
Ergotron’s mission is to improve the wellness of customers through human-centered design. This concern for health extends to creating environmentally responsible products. Durable and adaptable product design translates to long-term use (not disposal) of our products. Furthermore, when you invest in an Ergotron mounting solution, you are getting a product that complies with all international environmental regulations related to its design, manufacture and packaging. In fact, our product development program now exceeds many of these regulations. Read this flyer about Ergotron’s Responsible Manufacturing & Environmental Initiatives. Ergotron’s Minnesota and China manufacturing facilities are certified in accordance with ISO 14001:2004 for their environmental management systems. Our European facility is on track to be certified in spring of 2011.

Ergotron Receives Communitas Award
In the category of Excellence in Corporate Responsibility, Green Initiatives, Ergotron was honored by the 2010 Communitas Awards for its exceptional recycling program: 80% of potential waste at the company’s US headquarters/manufacturing facility gets recycled or re-used. Read more about Ergotron’s recycling efforts.

Download Responsible Manufacturing
Responsible Manufacturing

Downloads
Download Product Info
Product Info
Download Illustrations
Illustrations
Download Installation Guide
Installation Guide
