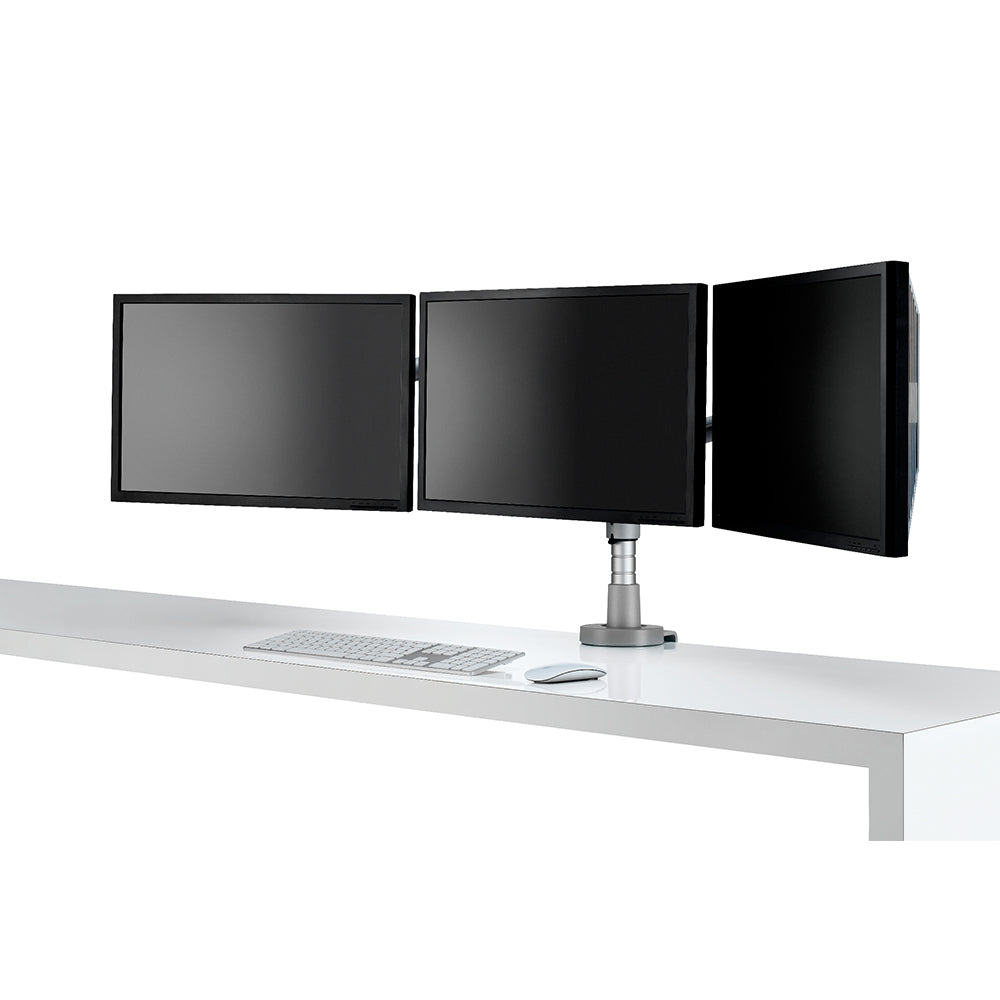

Flo Modular Triple Monitor Arm




Flo Modular incorporates the award winning features of Flo and the Wishbone post system into a single product to create the world’s most flexible, dynamic monitor arm.

Mounted onto the Wishbone post system, it provides a scalable solution for projects that can evolve over time and with user requirements where retro-fitting additional screens is required. The incorporation of a post allows users to easily switch between using one or two arms. Through the use of a Wishbone C-Post, Flo Modular can support a triple screen cockpit for 22” screens in landscape or 24” screens in a portrait configuration. A second tier can be created by extending the length of the Wishbone post. Multiple configurations include dual, triple, quad and hexa.

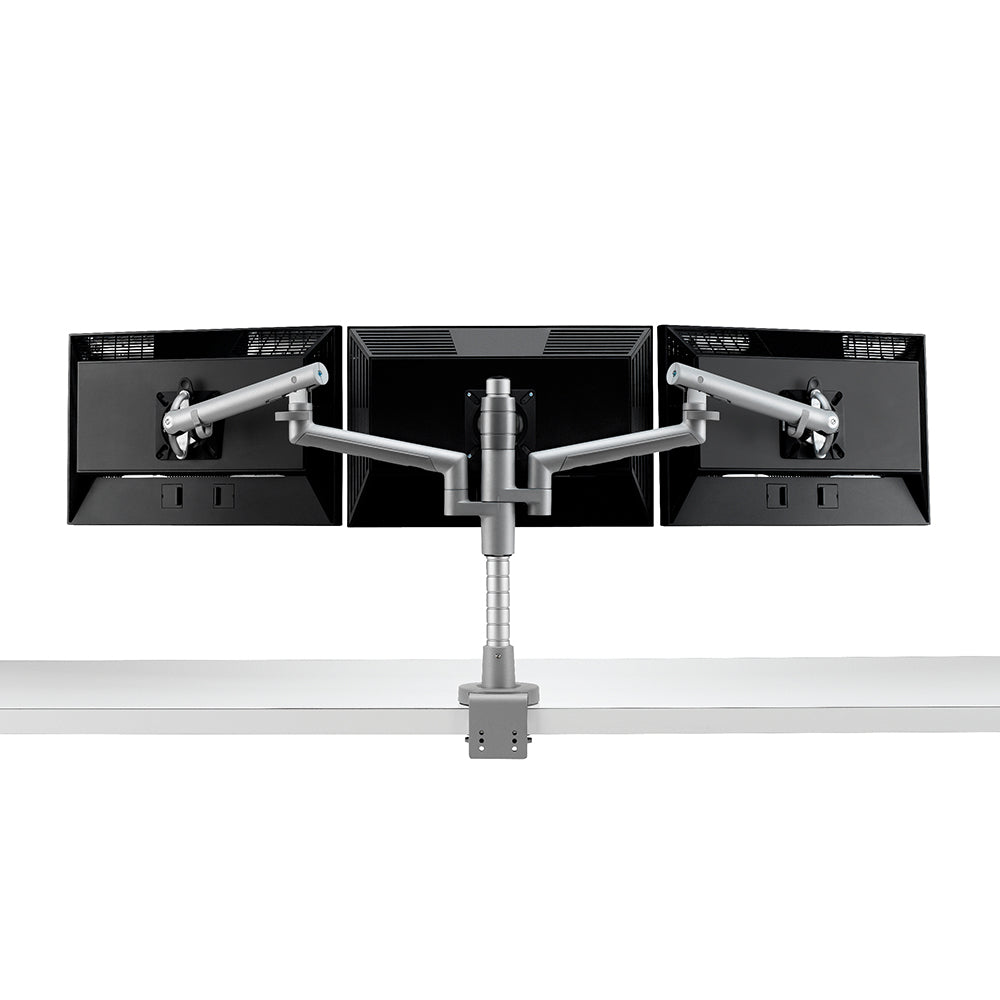

This configuration consists of the following parts:
Two Flo Modular Full Arms (DYN/013/007/S)
Wishbone C-post with Quick Release (WSH/003/PQR/S)
500mm Wishbone Post (WSH/PST500/K/S)
Universal High Load Split Mount Clamp 0-68mm (UNI/HLC/001/S) OR Bolt Through 10-35mm (WSH/50S12/K/S)
High Load Location Ring (HLR/03/017)

Features

Scalable Solution
By mounting onto the Wishbone post, Flo Modular provides a scalable solution that can evolve as user needs change. When additional screens are required, a single arm set-up can be transformed to a dual monitor arm solution, with further evolution for triple monitors, and multi-screen requirements possible.

Greater Height Range
The use of the Wishbone post provides a greater monitor height range, ideal for scenarios where there may be an increased distance between the surface and the top of the monitor, such as standing terminals and workstations.


Specifications

Weight Capacity
3 - 9 kg

Tilt
80°up / down

Rotation
90° for portrait / landscape viewing

Pan
90° left / right

Lift
341 mm

Arm Extension
510 mm

Colour
Silver

Display Compatibility
VESA 75/100mm

Mounting Options
Desk clamp - for desk < 68 mm thick



Bolt through - for desk 10 - 35 mm thick

Technical Drawing
For technical drawing please view in gallery or download PDF file.
