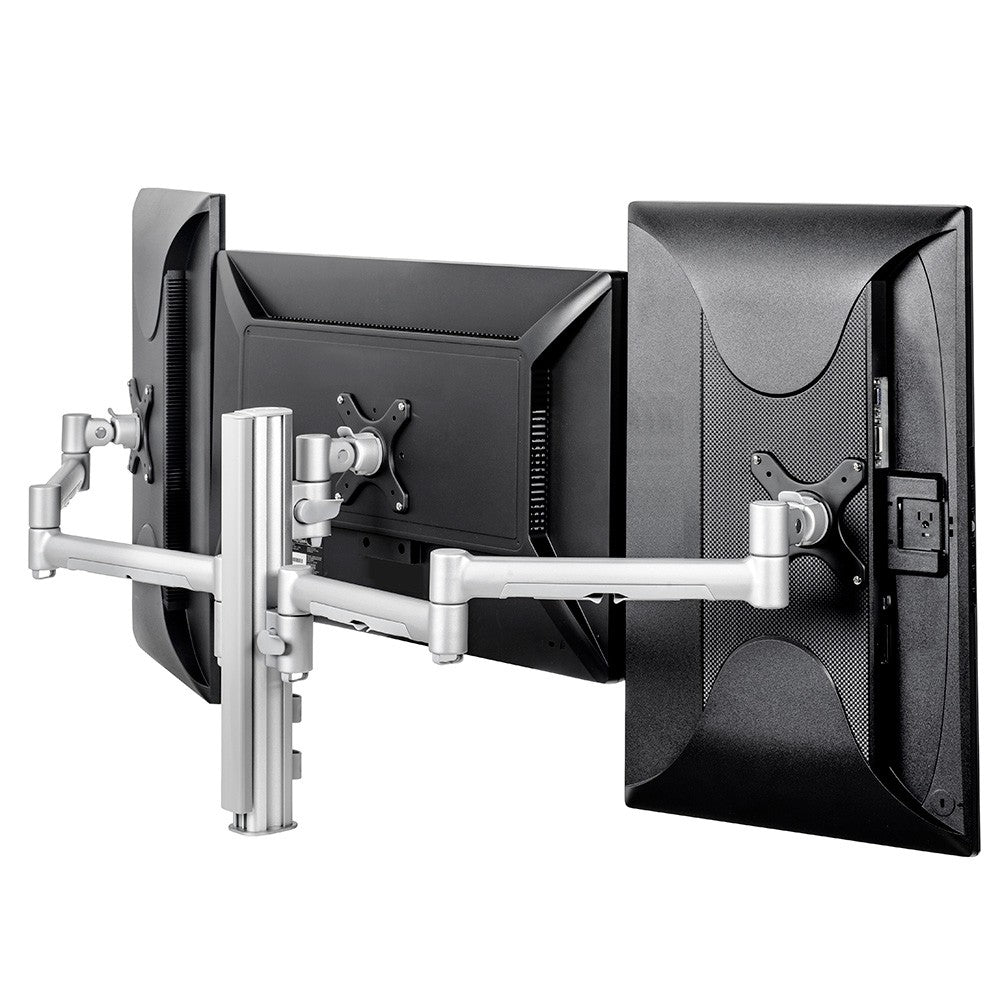

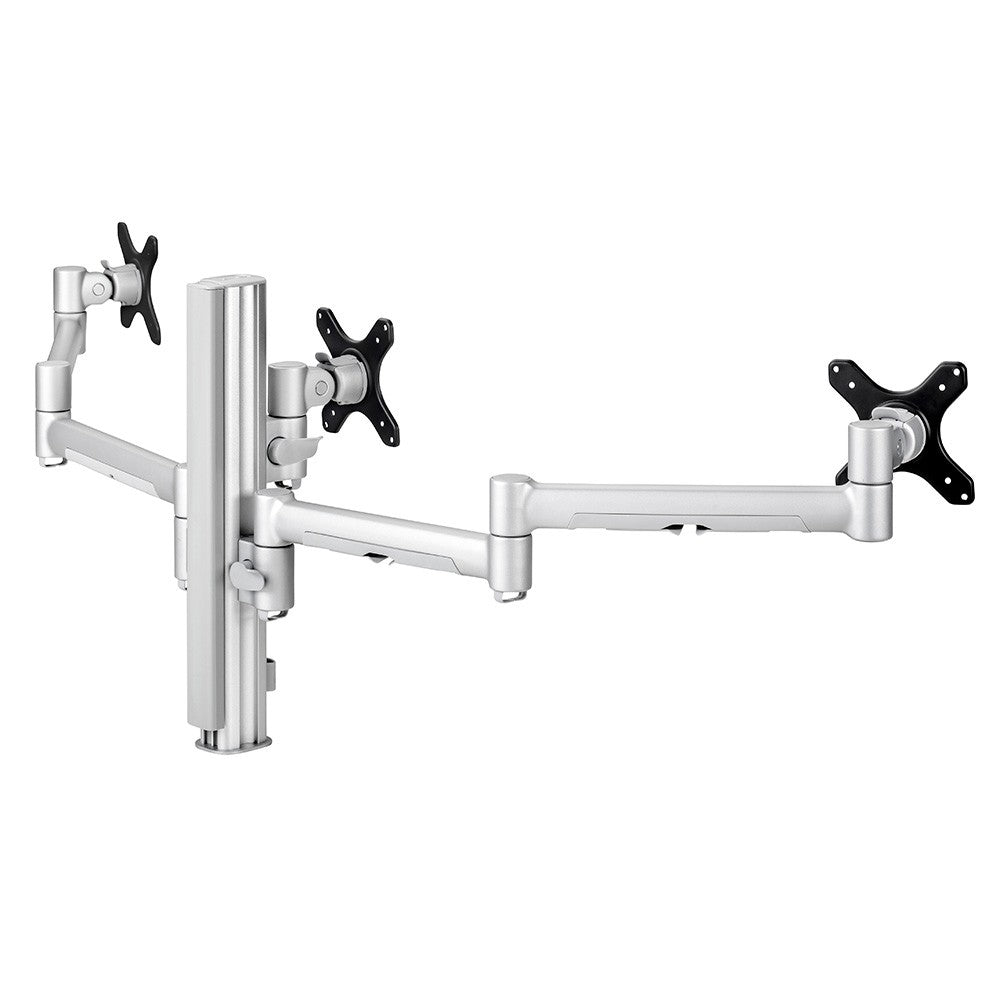

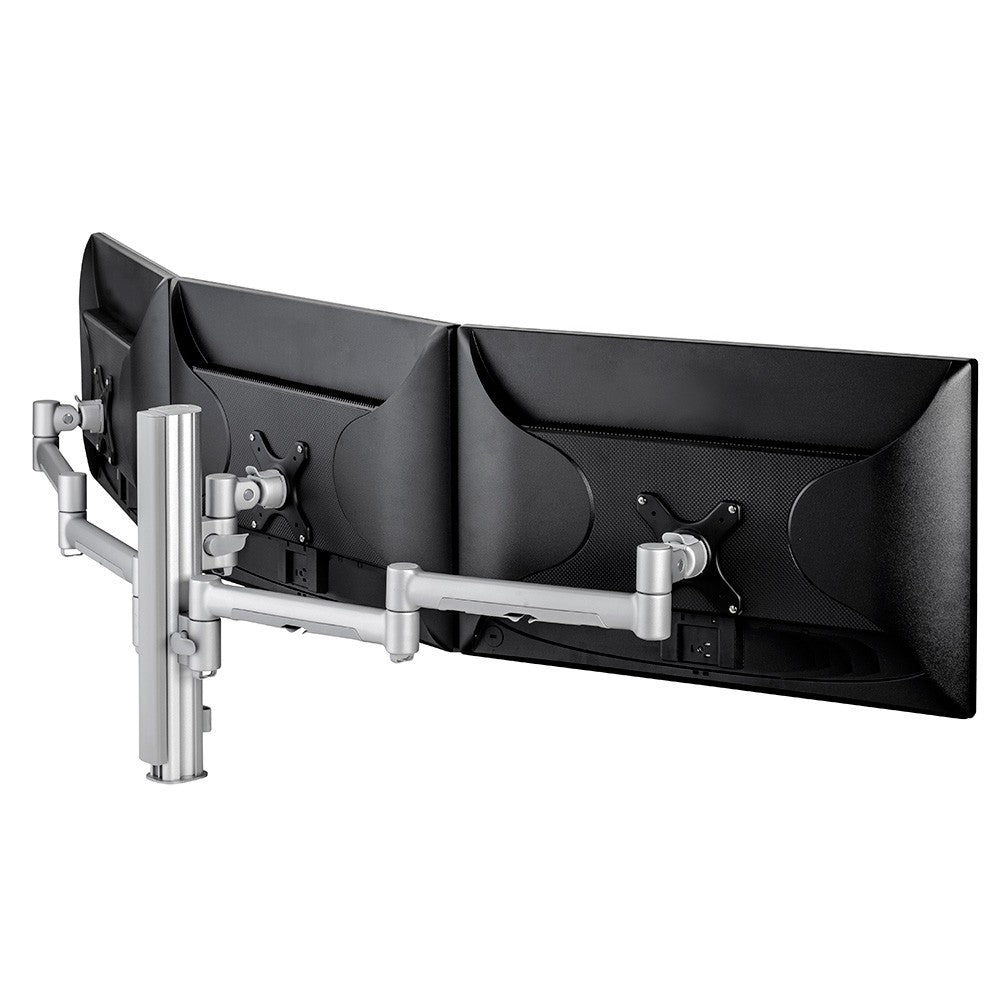

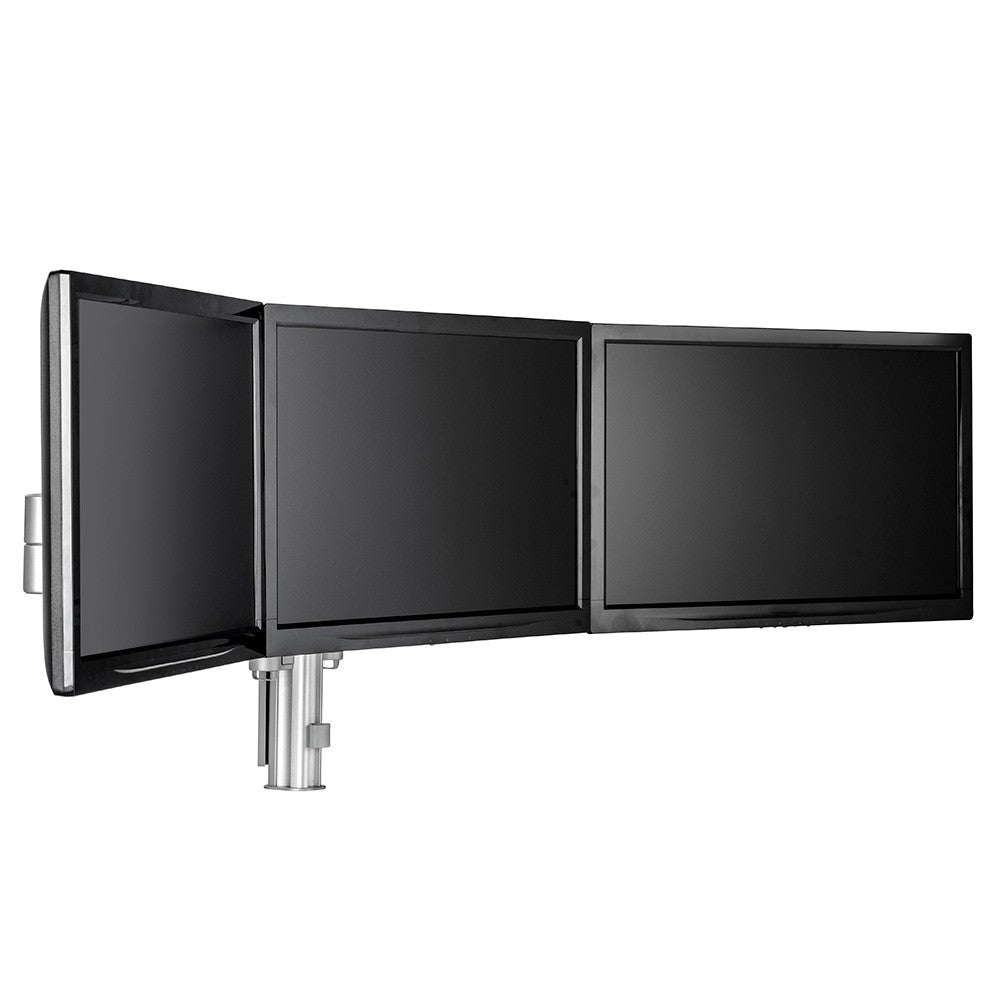

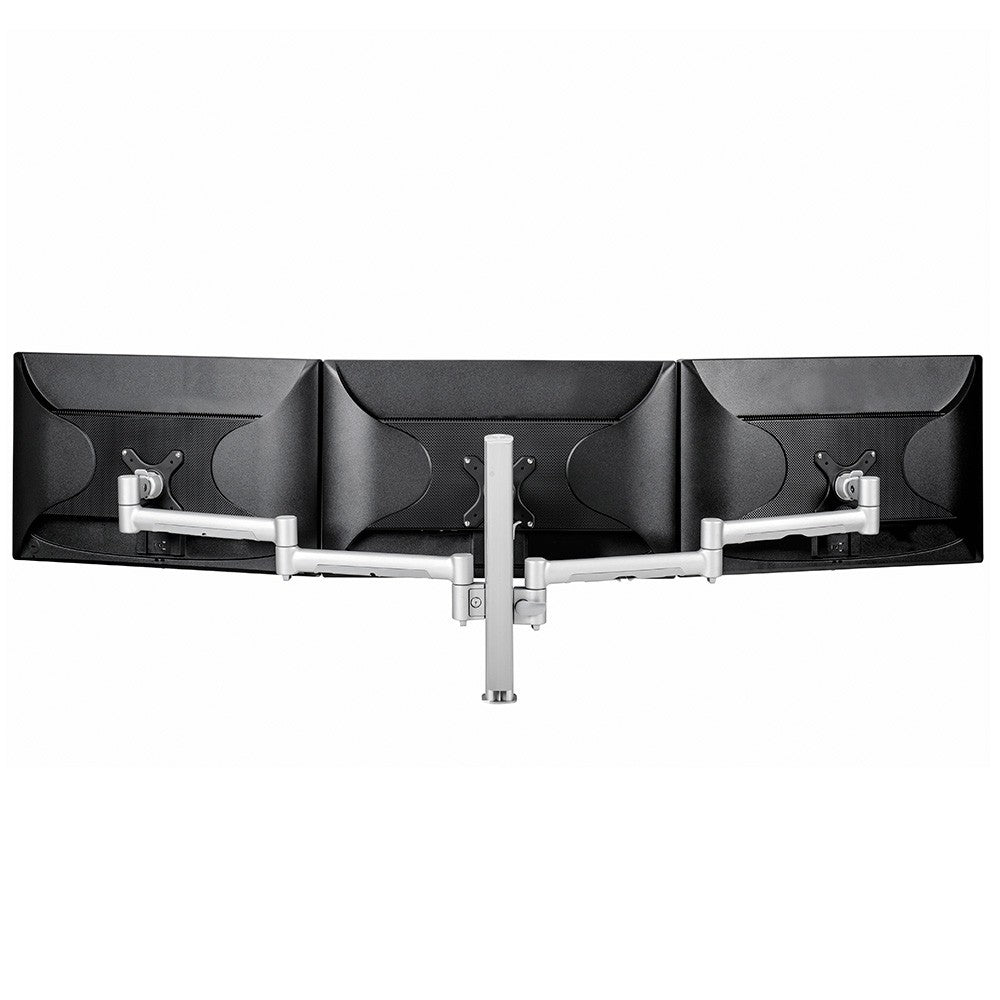

Systema AWMS-3-13714-F-S Triple Monitor Arm




SYSTEMA AWMS-3-13714 desk mount for 3 monitors. All arms are articulated for greater adjustment flexibility.
400mm post. 2 x 710mm arms support displays up to 8kg; 1 x 130mm middle arm supports up to 12kg. VESA 75x75mm & 100x100mm.
Display height adjustment, tilt, pan, portrait to landscape rotation.
Desk clamp mounting included.

This solution is part of the SYSTEMA modular range and consists of the following individual components:

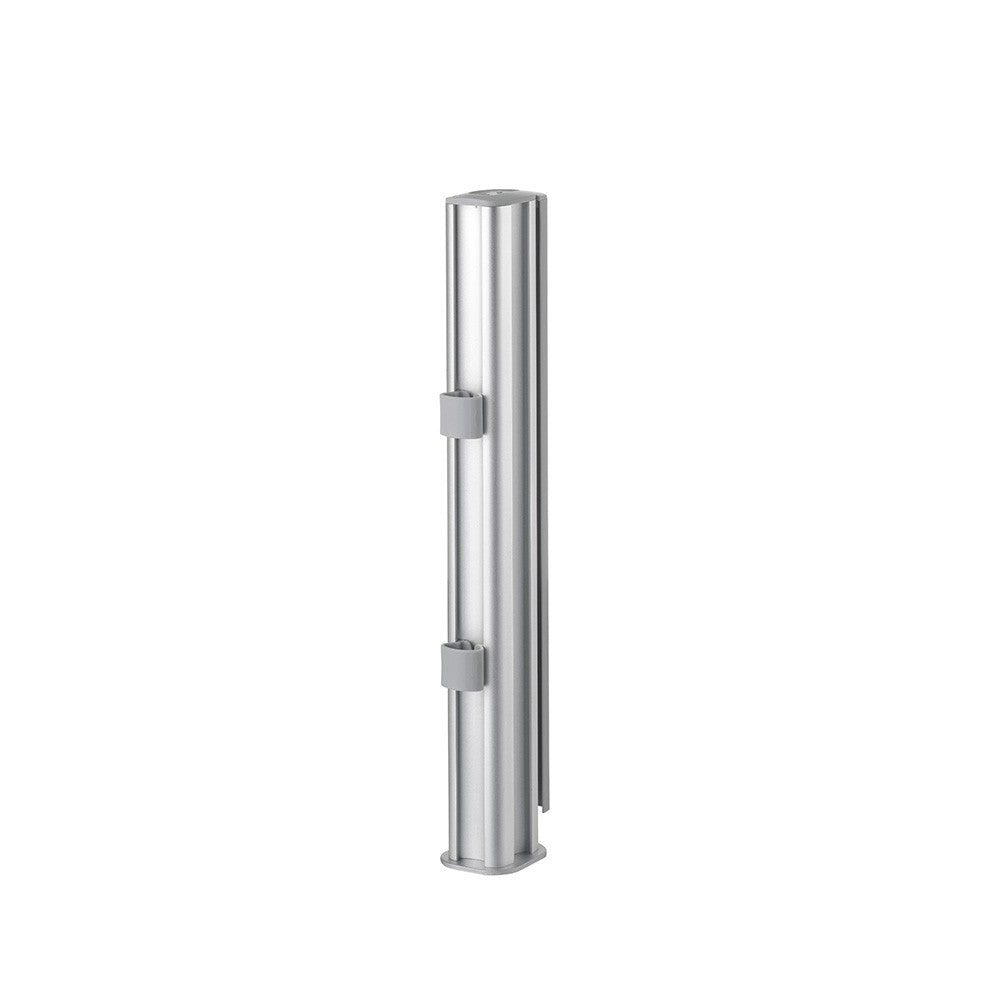

1 x AWM-P40-S post,

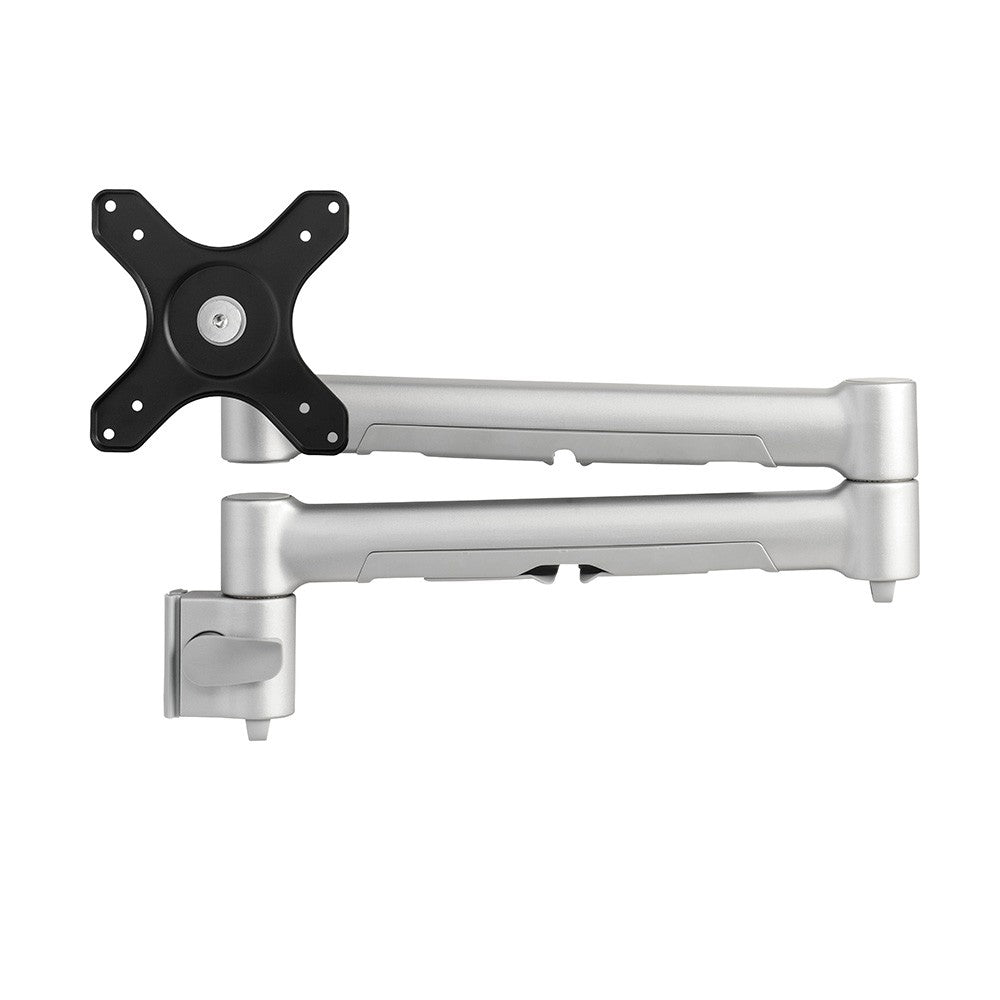

2 x AWM-A71-S display arms

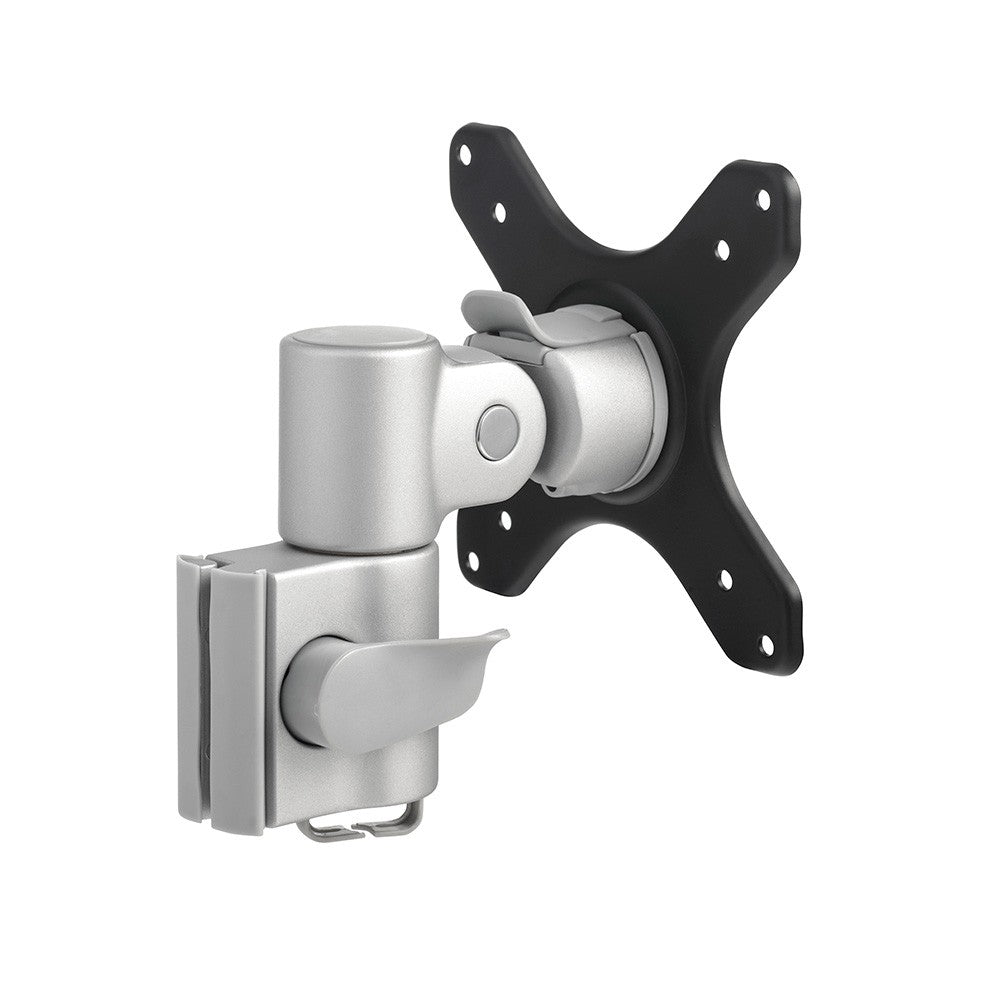

1 x AWM-A13-S display arm
1 x AWM-FF-S desk clamp (F-Clamp)

Features
  • Supports a wide range of displays weighing up to 12kg on the 130mm arm and up to 8kg on the 710mm arm
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting option included
  • Display tilt, pan and landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty
Specifications
  Weight Capacity   8 kg per display
  LCD Size   up to 24"
  Maximum Notebook Size   18"
  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   Check specification document
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   68 mm
Downloads
Download Product Info
Product Info
Download User Manual
User Manual
Download Illustrations
Illustrations
